SmallRig L-Bracket for Nikon Z 9 3714

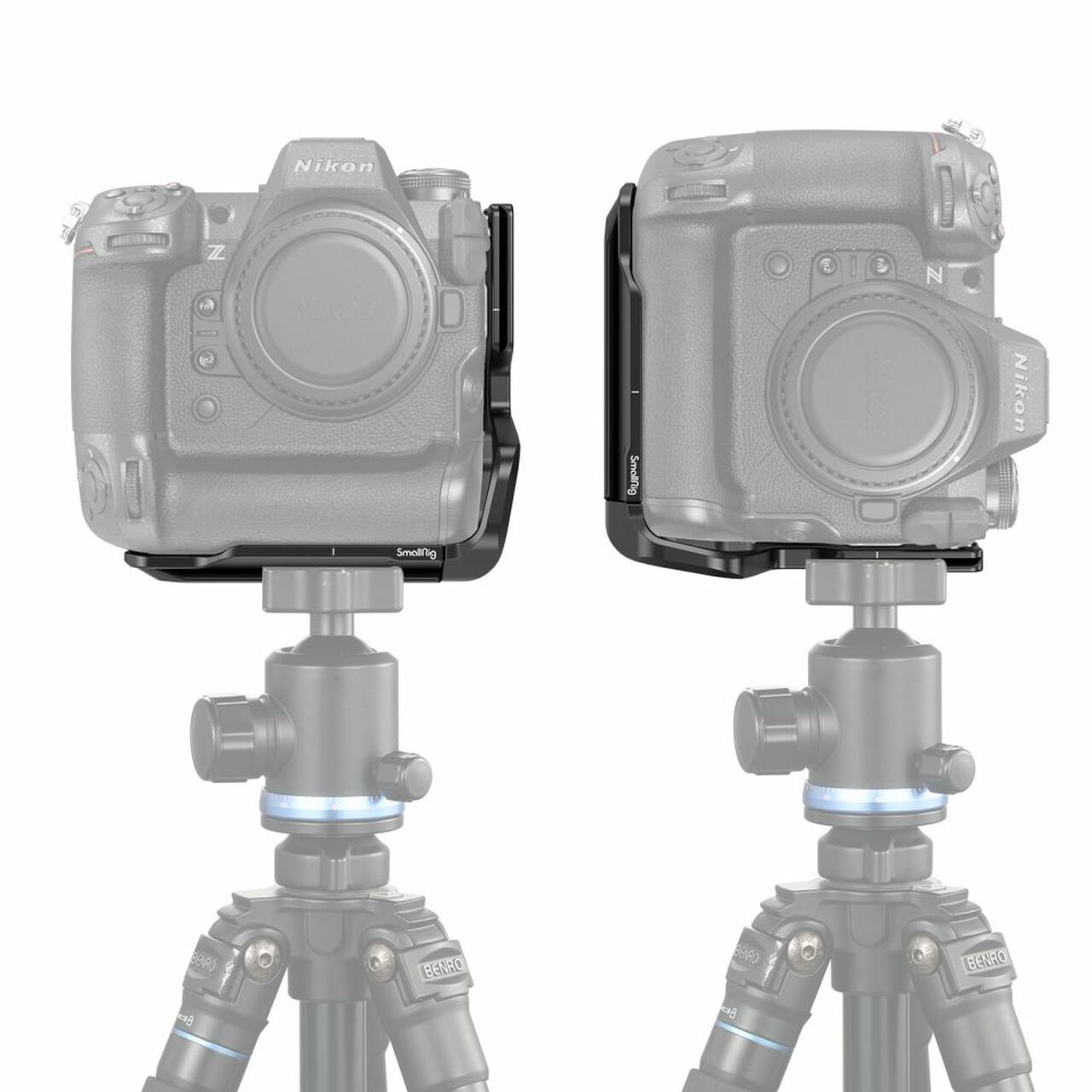

SmallRig L-Bracket for Nikon Z 9 3714 is designed for quick switch between horizontal and vertical shooting. It is locked into the bottom of a camera via a 1/4"-20 screw and an anti-twist…

More information

75.53 € with VAT 62.42 € without VAT
-+
Availability
E-shop in stock 4 pcs
Praha 2 pcs, Vienna 2 pcs
Product description

Product description

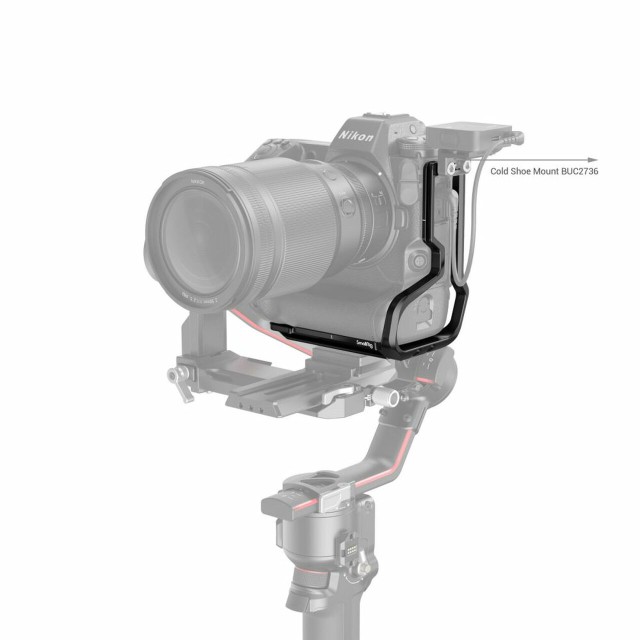

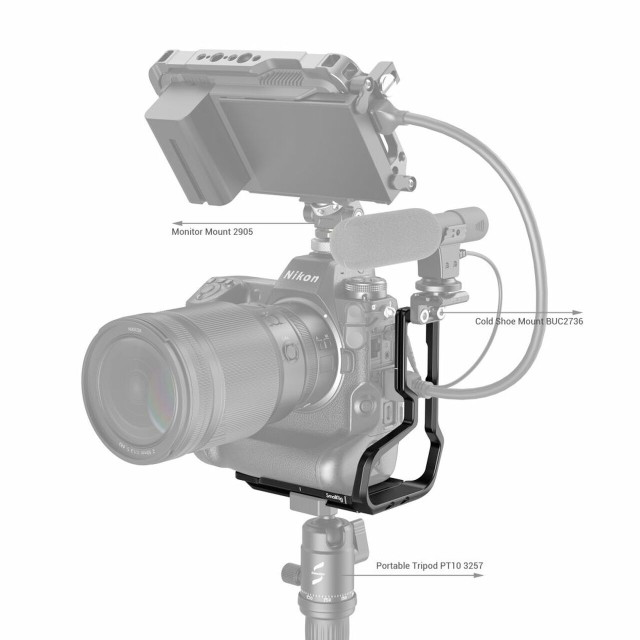

SmallRig L-Bracket for Nikon Z 9 3714 is designed for quick switch between horizontal and vertical shooting. It is locked into the bottom of a camera via a 1/4"-20 screw and an anti-twist screw, fitted with a silicone pad to prevent scratches and deflection, and can be disassembled into an Arca-compatible base plate (used separately) and side plate, both with lens center mark. The L-Bracket does not block ports, buttons, card slot, battery door, and 4-axis tilting LCD screen. The base plate features mounting points such as 1/4”-20, 3/8"-16 threaded holes and wrist strap support to attach Quick Release Plate 1280 and the quick-release plate (pad) of DJI RS 2/RSC 2 stabilizers to realize quick switching multiple scenes such as tripod and stabilizer. Extendable side plate featuring two 1/4"-20 threaded holes supports Cold Shoe Mount 1593 and BUC2736 to attach microphone and leaves room for HDMI and USB cables. In addition, a slotted screwdriver is accessible for easy disassembly and assembly.


PACKAGE CONTENT

  • 1 x base plate
  • 1 x side plate
  • 2 x M4 screws
  • 1 x Allen Wrench

SPECIFICATIONS

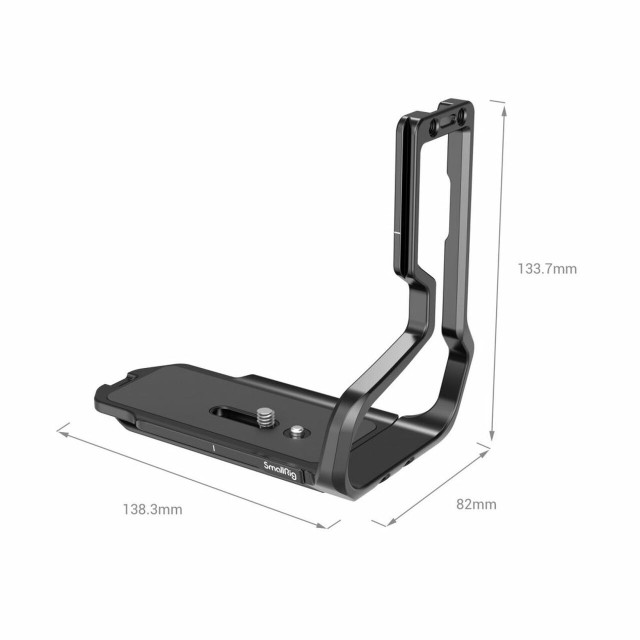

  • Product Dimensions: 138.3 x 133.7 x 82 mm
  • Package Size: 145 x 104 x 57 mm
  • Product Weight: 152g±5g
  • Package Weight: 220g±5g
  • Material(s): Aluminum alloy, stainless steel
Parameters

Parameters

Manufacturer: SmallRig
Category: Cages

Main parameters

Accessories for the cameraNikon Z 9
