SmallRig EVF Mount with NATO Clamp and Arri Rosette 1583

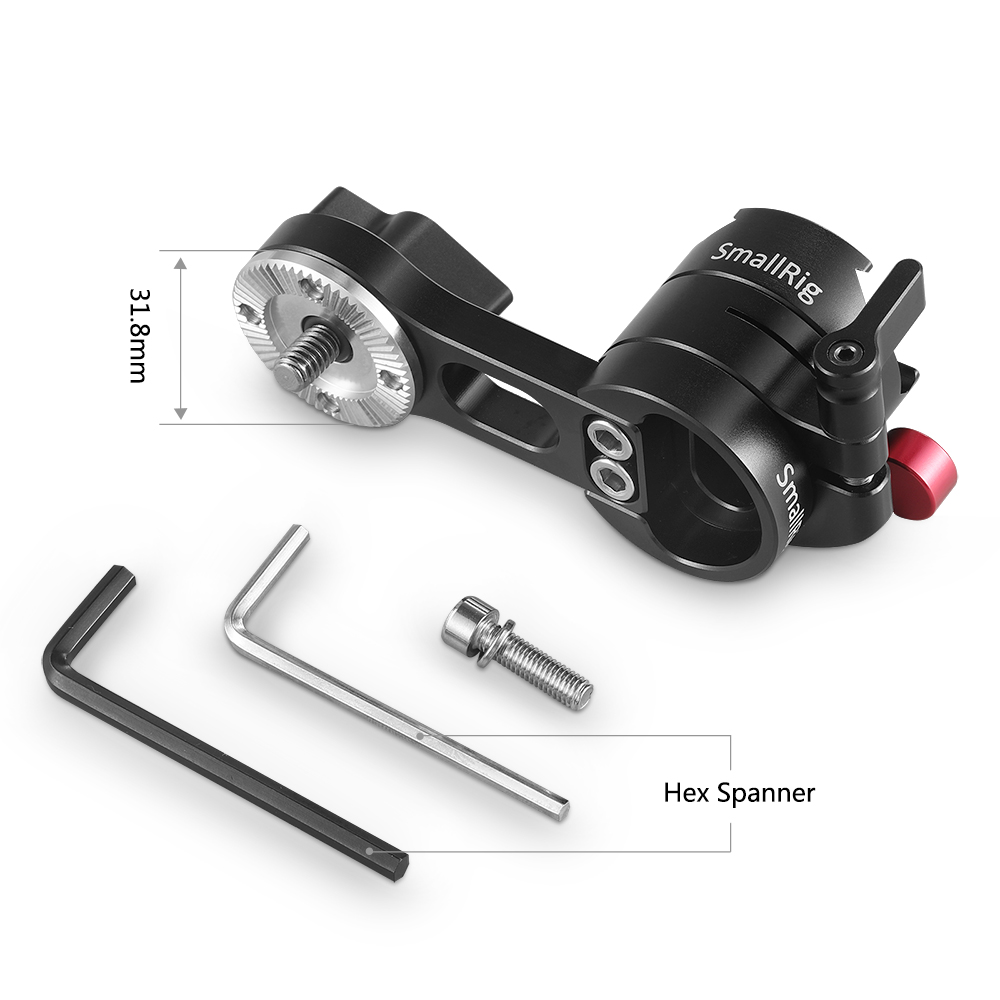

This is an EVF mount for Zacuto Gratical HD EVF. The rosette is in standard ARRI style (31.8mm diameter).It can be attached to a Zacuto Gratical HD EVF with the 1/4" screw on one end, the arm can swivel freely for adjusting the position of EVF.It can also be attached to a NATO rail for sliding up and down.

More information

57.93 € with VAT 47.88 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
Product description

Product description

This is an EVF mount for Zacuto Gratical HD EVF. The rosette is in standard ARRI style (31.8mm diameter).It can be attached to a Zacuto Gratical HD EVF with the 1/4" screw on one end, the arm can swivel freely for adjusting the position of EVF.It can also be attached to a NATO rail for sliding up and down.

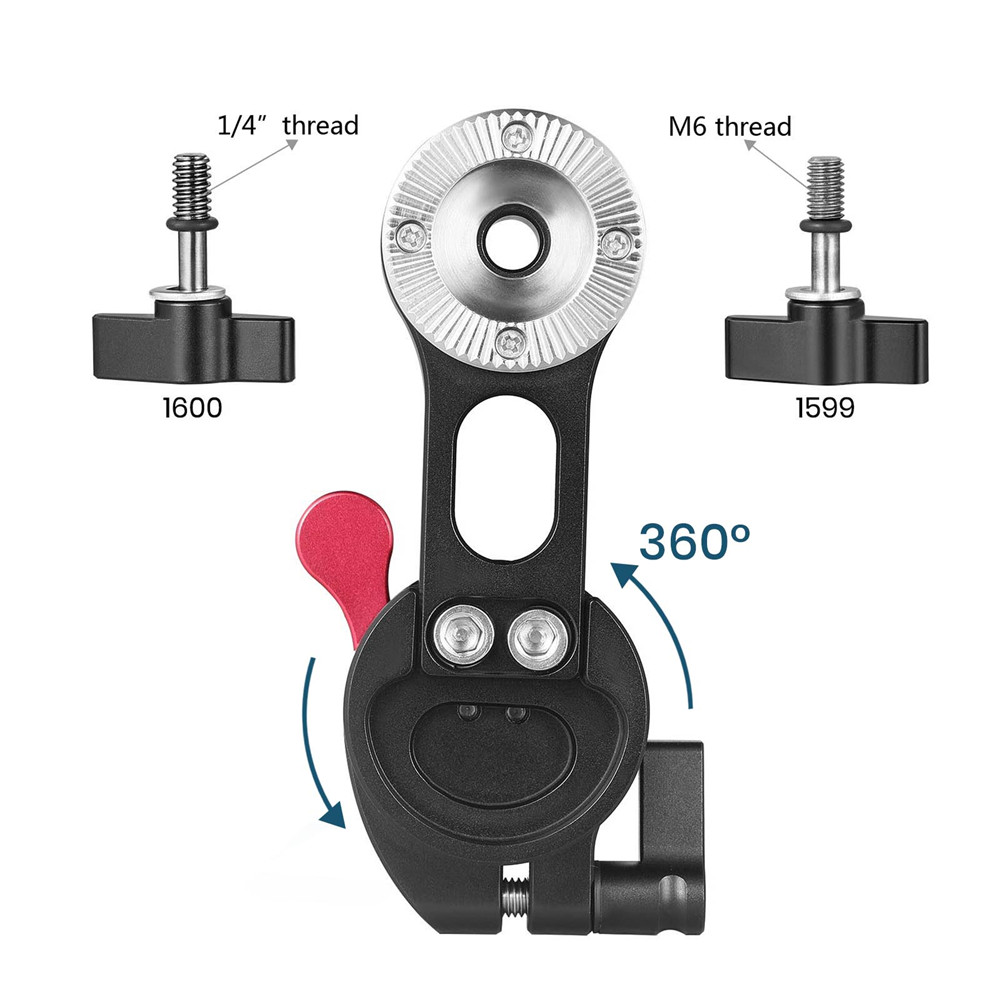

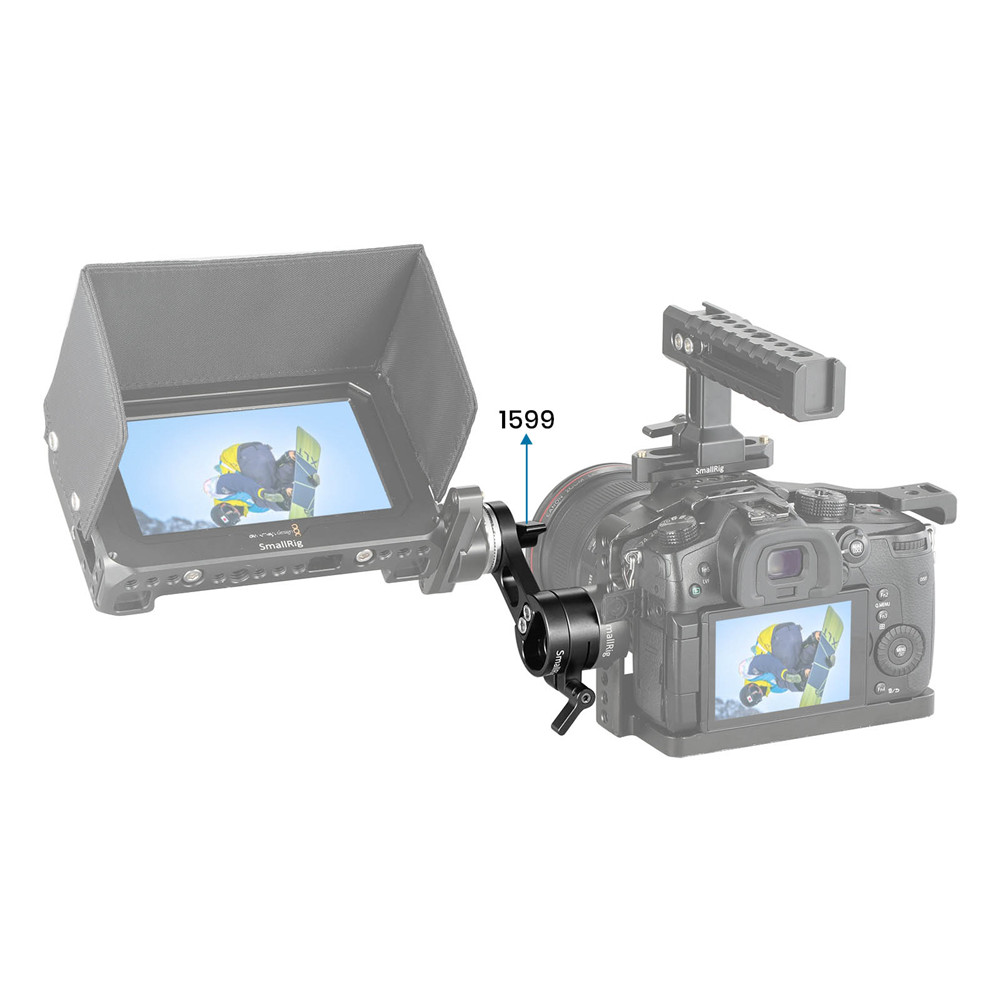

Note: If you want to attach this EVF mount to a device coming with a standard ARRI Rosette mount(M6 thread), please go order the M6 wingnut 1599.

Key Features
1. It supports 360°adjustment of monitoring.
2. It supports monitor/EVF no more than 2.0kg.
3. It could be used together with NATO Rail 1195 for quick release and attachment.
4. It comes with Arri rosette mount with 1/4" screw for Zacuto Gratical HD EVF.

Compatible With
Monitor/EVF no more than 2.0kg

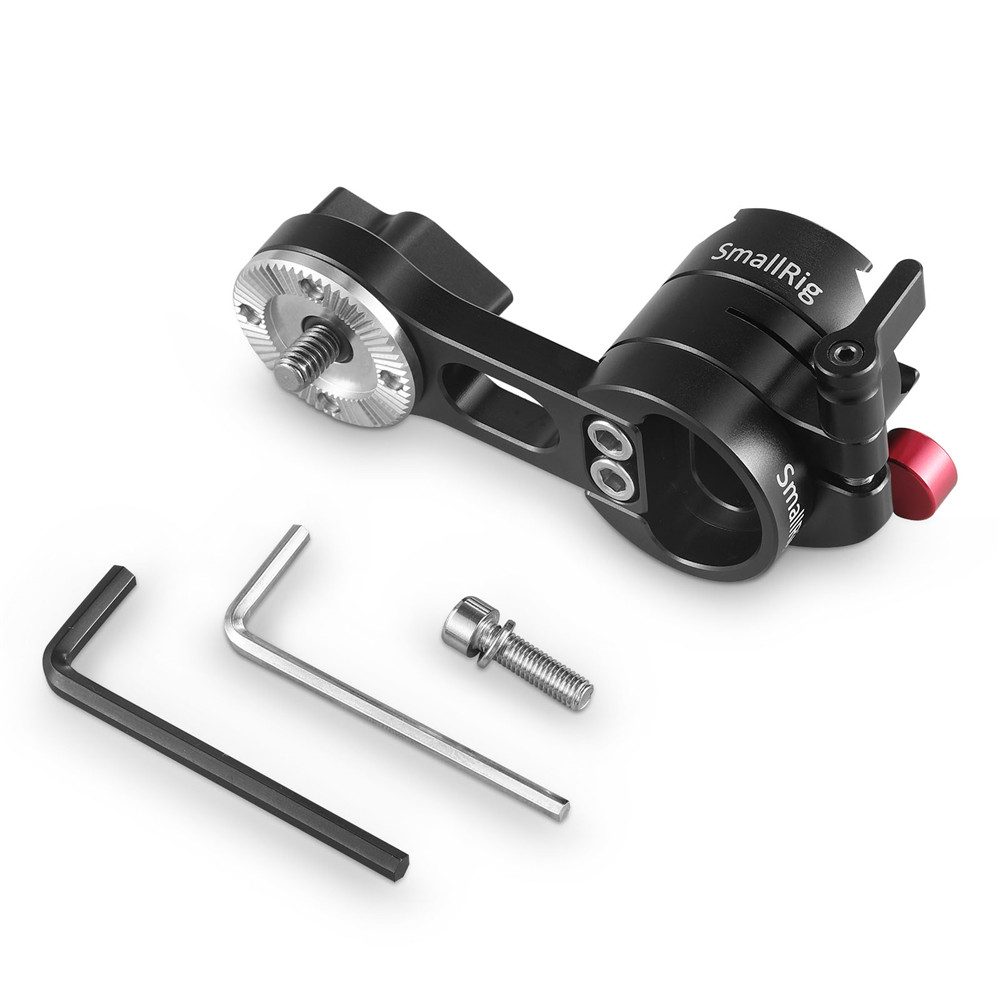

PACKAGE CONTENT

1 x EVF Mount 1583
1 x M5 Screw
2 x Hex Spanner

SPECIFICATIONS

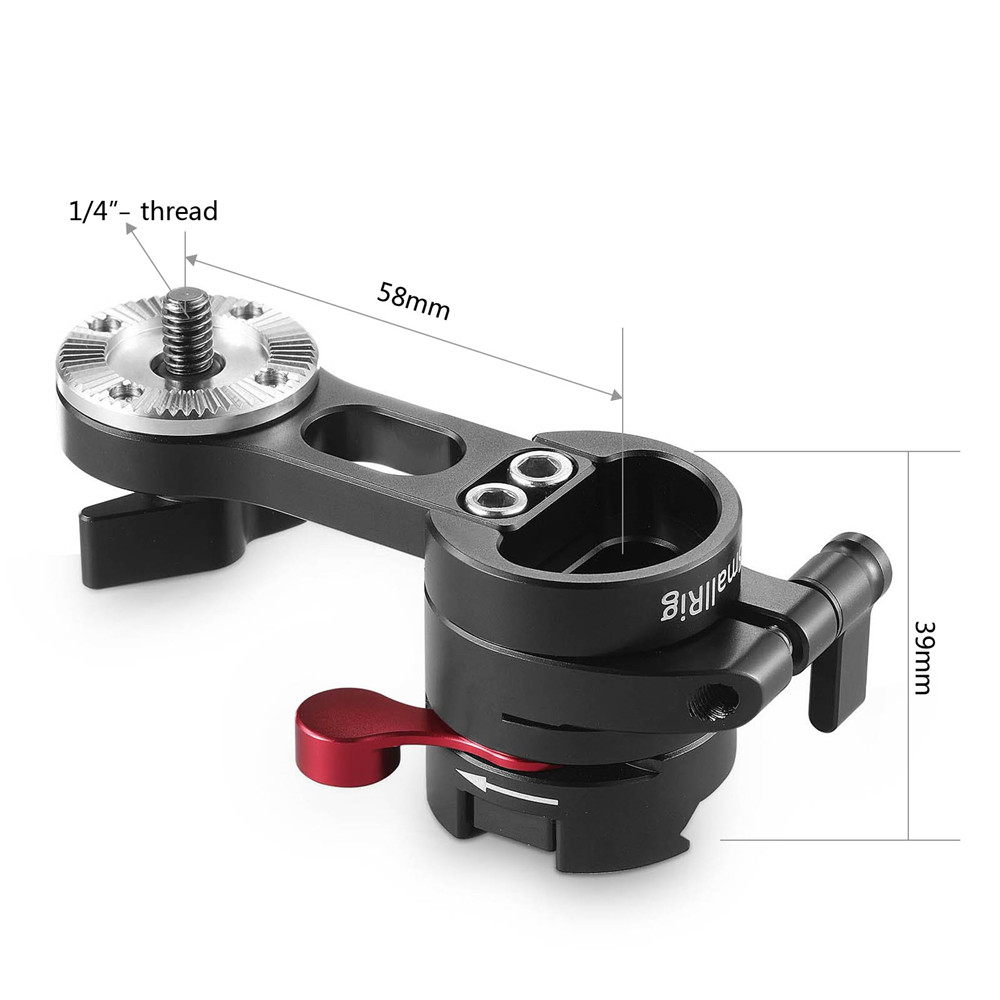

Product Dimensions: 100x52.5x48 mm
Net Weight: 161g
Package Size: 155x80x40 mm
Material(s): Aluminum Alloy

Parameters

Parameters

Manufacturer: SmallRig
Category: Accesories Rigy
