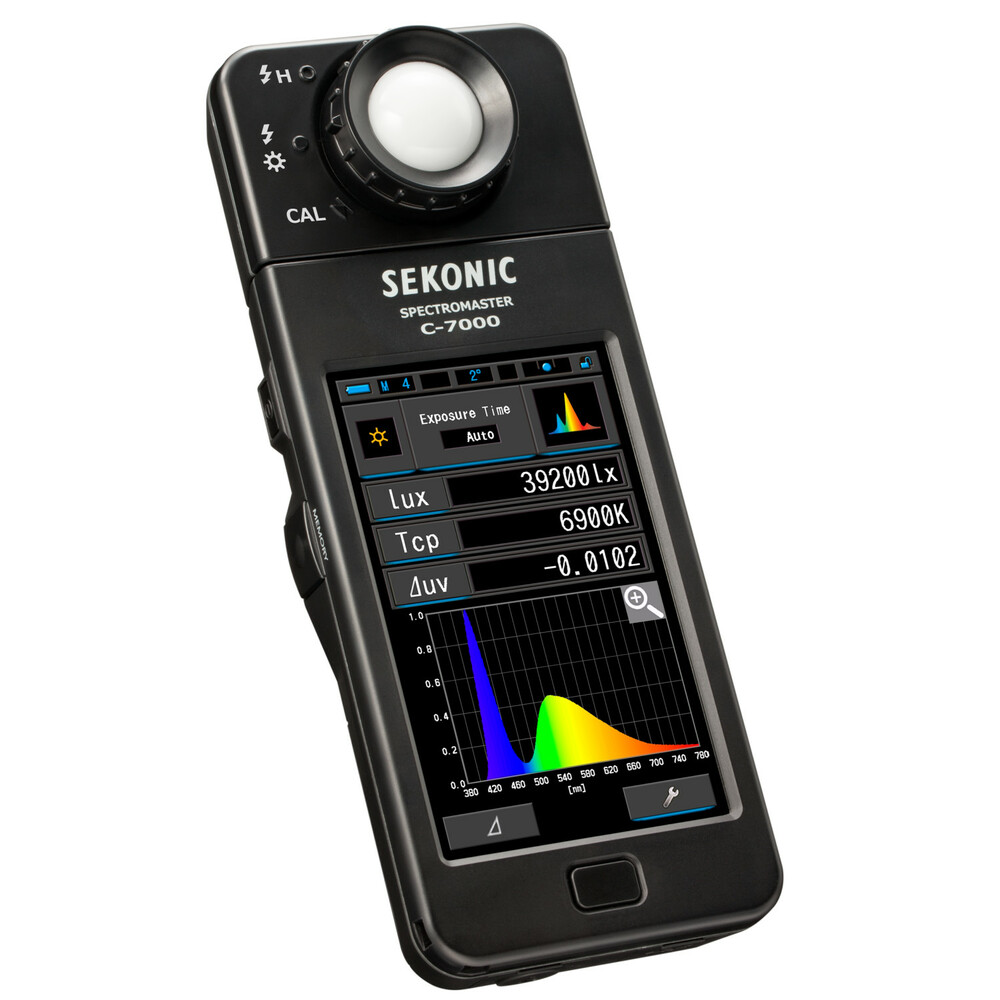

Sekonic C-7000 SPECTROMASTER Spectrometer

The Sekonic SPECTROMASTER C-7000 is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility…

More information

2 360.9 € with VAT 1 951.16 € without VAT
-+
Availability
on request
Product description PACKAGE CONTENT

Product description

The Sekonic SPECTROMASTER C-7000 is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.

Key features:

  • * with the latest firmware
  • Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm
  • Wide measurement range of Color Temperature (1,563 to 100,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)
  • Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class
  • Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp, Pe
  • Spectrum Mode / Spectrum Comparison Mode
  • PPFD (Photosynthetic Photon Flux Density) Measurement
  • Expanded Color Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18) *
  • CIE1931 (CIE1964) Chromaticity Coodinates and CIE1931 (CIE1964) Comparison Mode
  • CIE1976 Chromaticity Coodinates and CIE1976 Comparison Mode
  • 2°or 10° field of view is selectable
  • Single / Continuous measurement *
  • Exposure time (Shutter speed) is selectable
  • Up to 999 measurements can be stored in memory
  • User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function
  • C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data
  • 1nm / 5nm increment spectrum output in CSV format by Utility
  • SDK (Software Development Kit) for remote control is available

PACKAGE CONTENT

    • Startup Guide
    • Strap
    • Soft Case
    • USB Mini-B cable
    • CD-ROM
    • Safety Precaution

Downloadable from website:

  • Operating Manual
  • Startup Guide
  • Utility Software
  • Software Development Kit (upon request)
  • Limited 1-Year Warranty with 2-Year Extension upon Online Registration (US only)


Parameters

Parameters

Manufacturer: SEKONIC
Category: Studio Lights

Main parameters

Light controlBluetooth IOS/Android application
