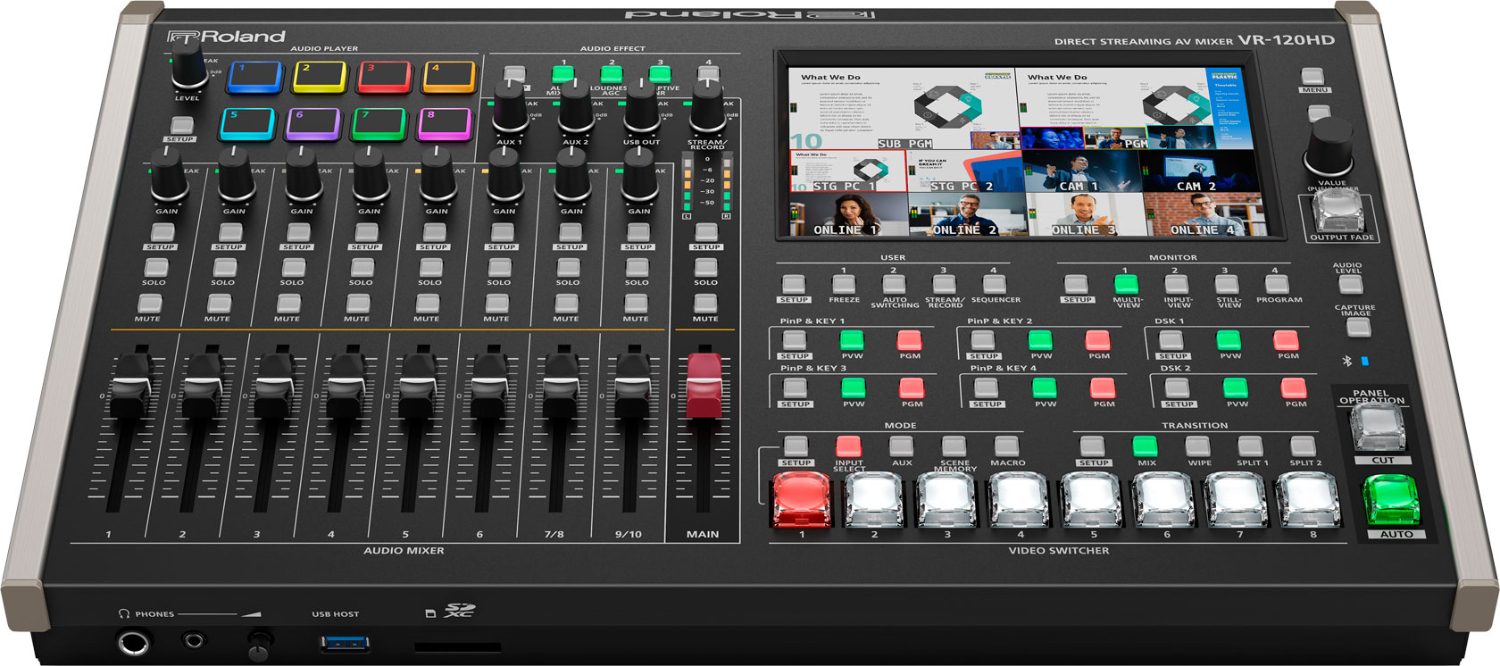

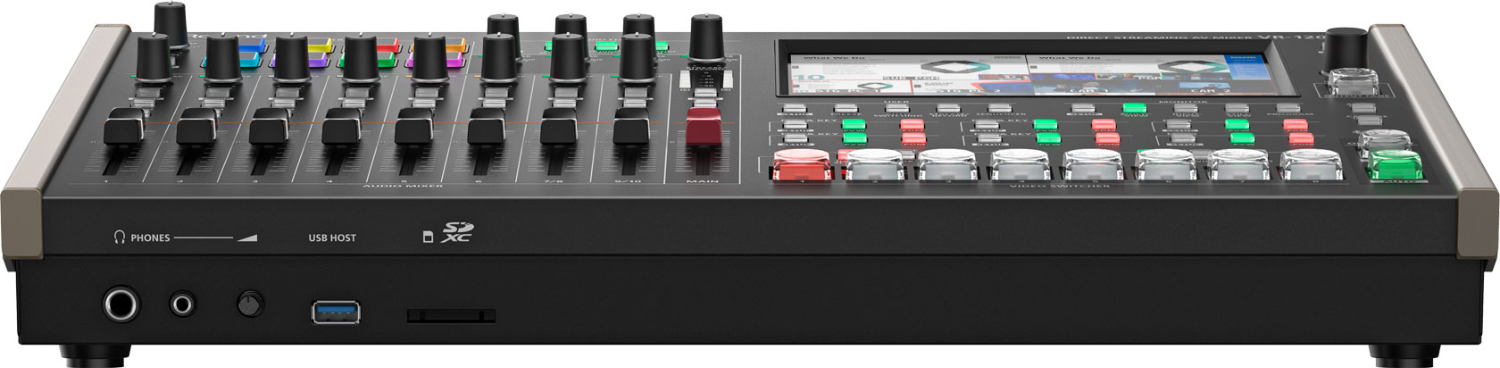

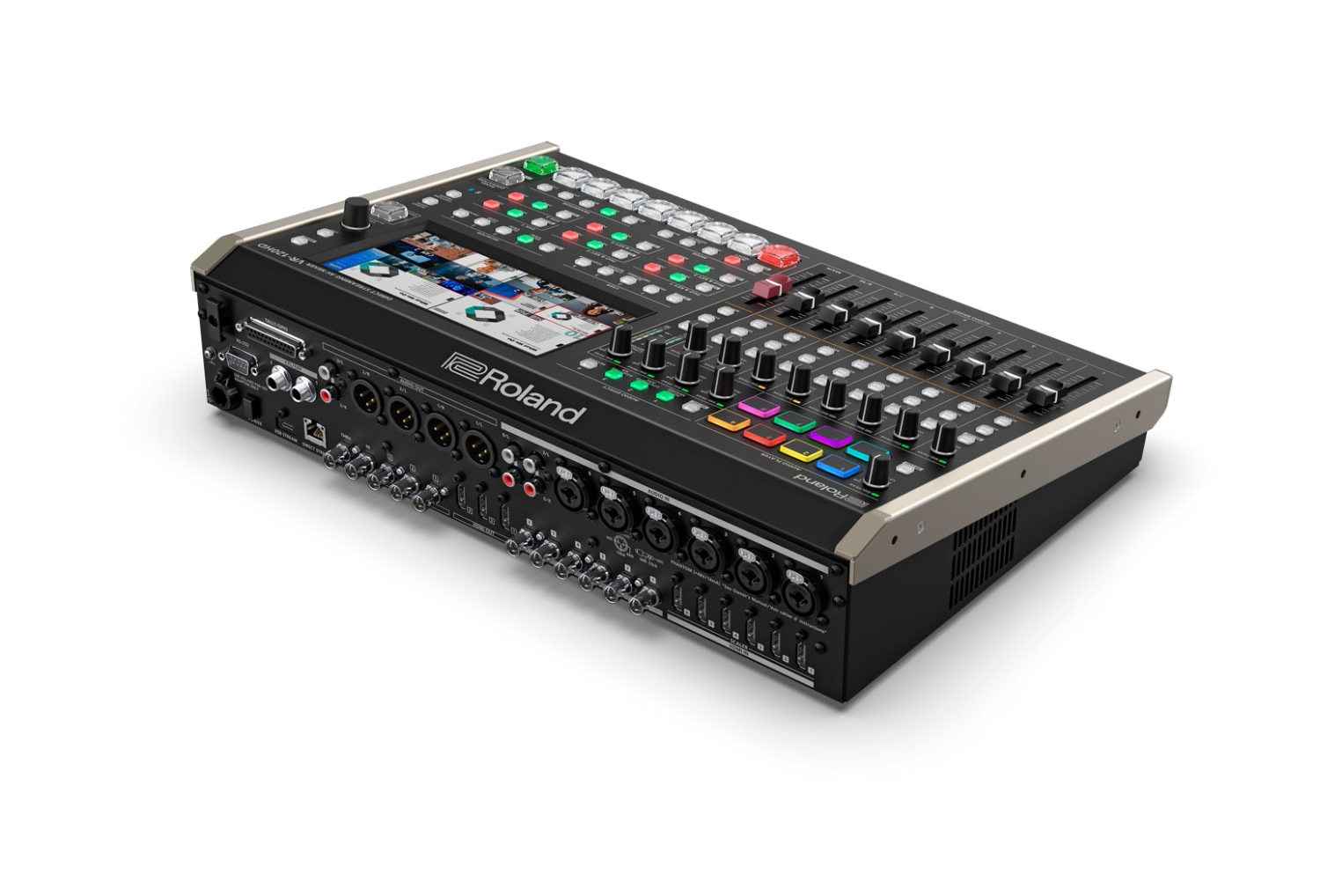

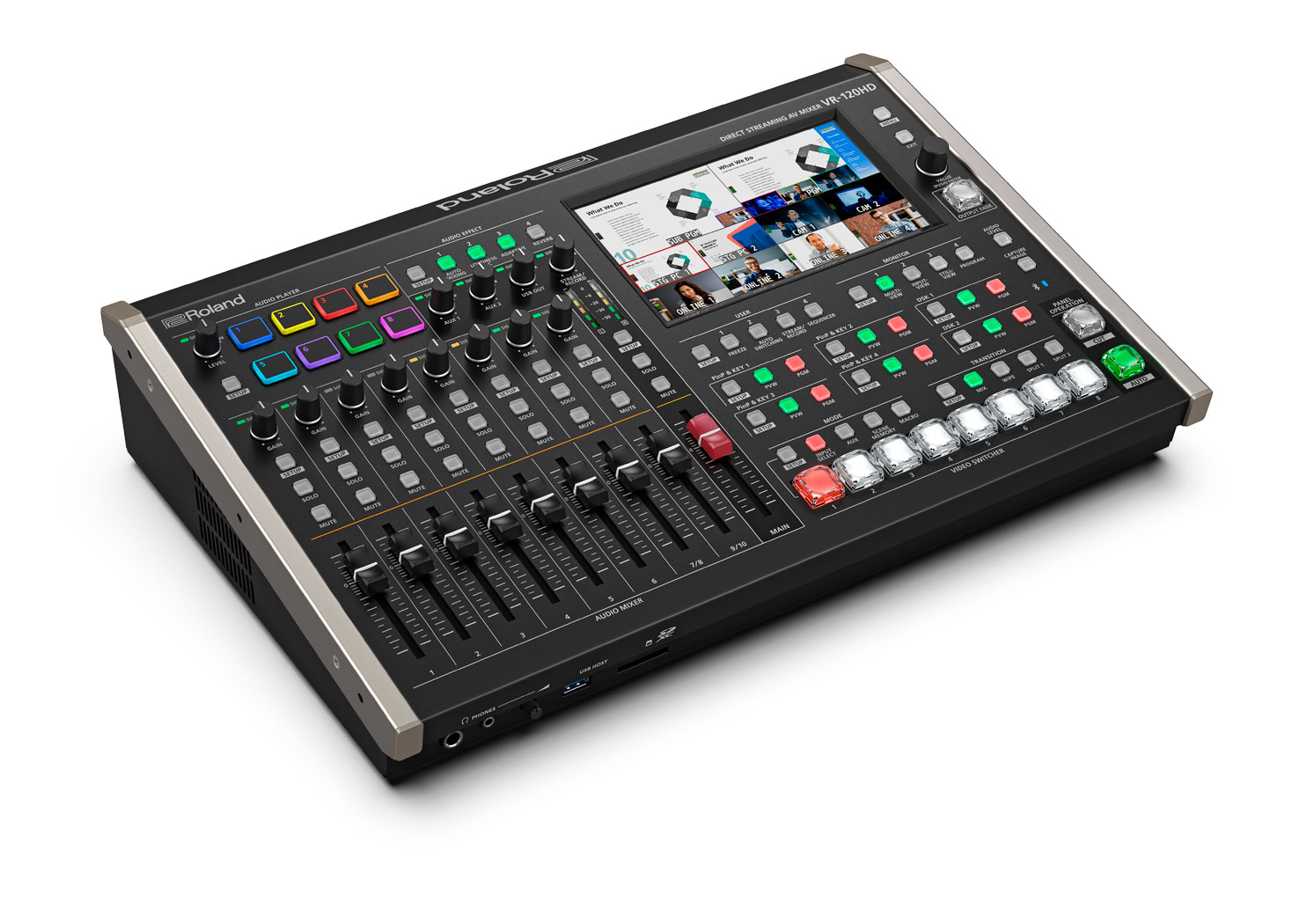

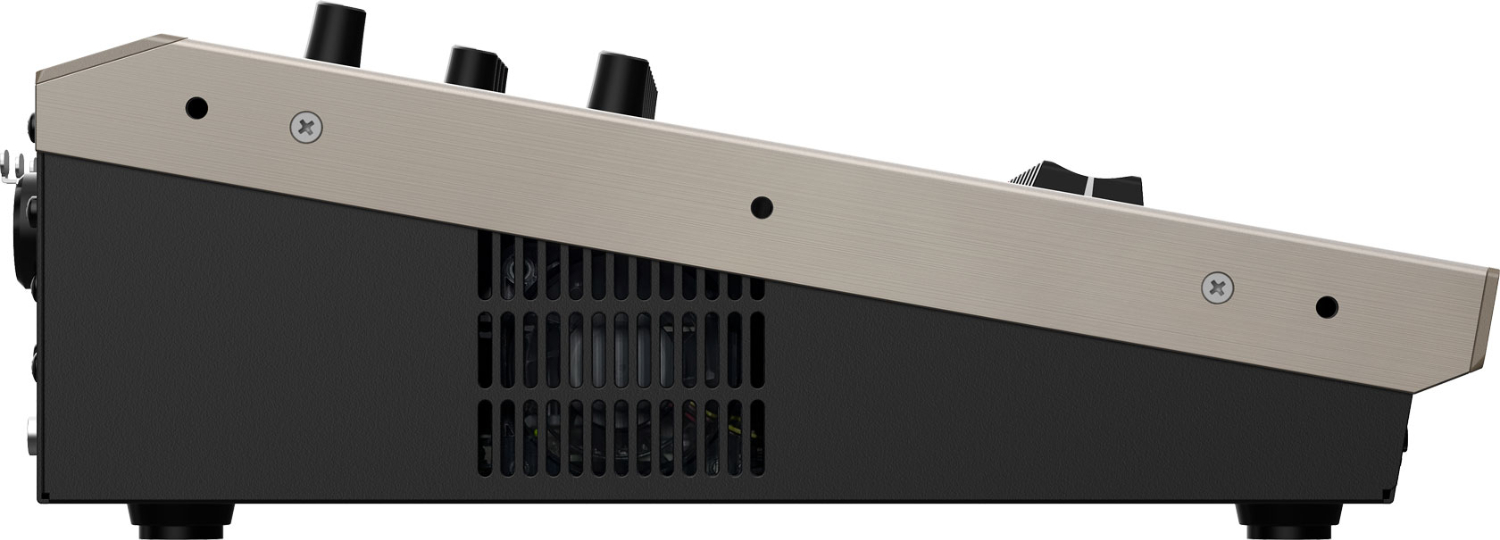

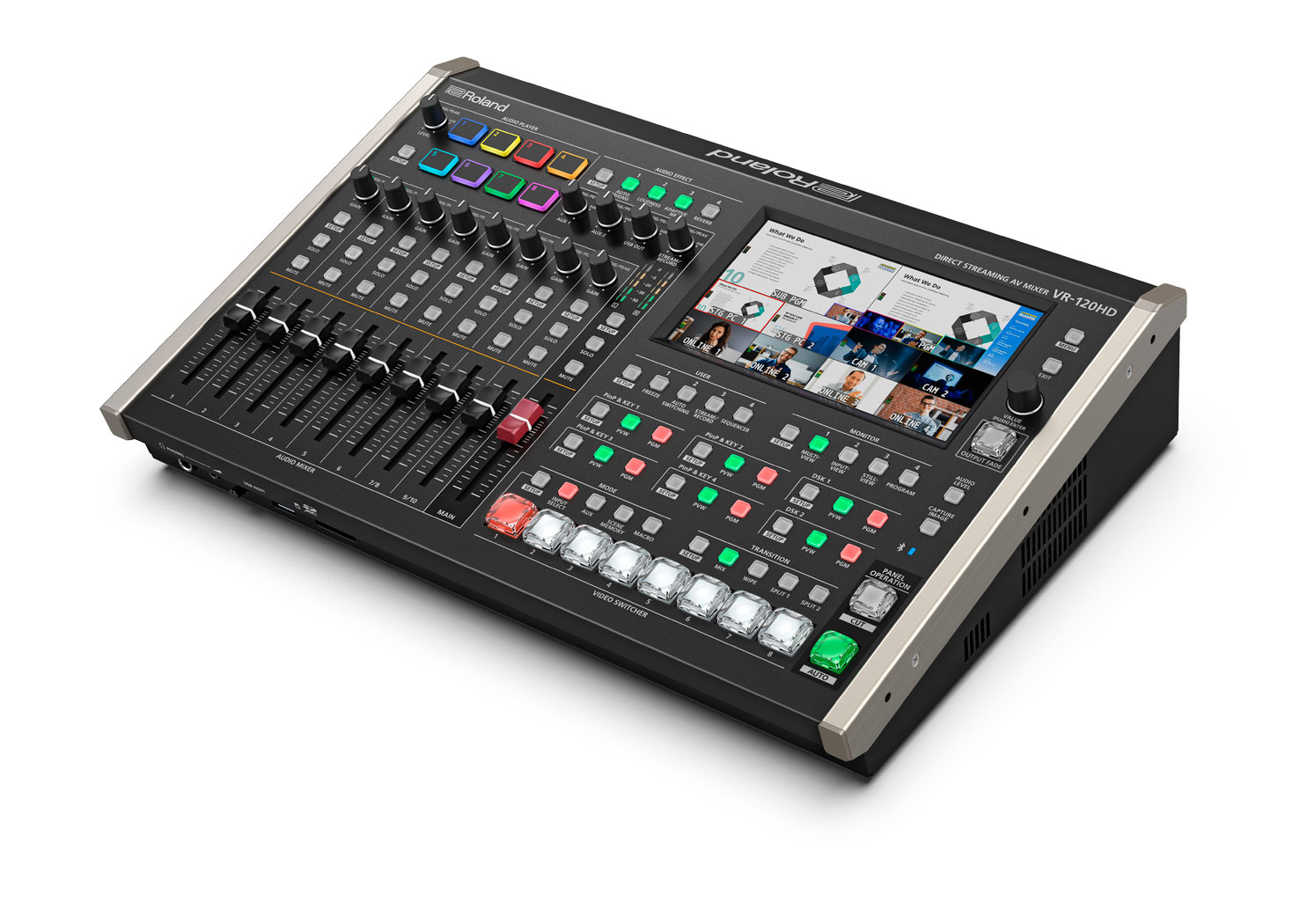

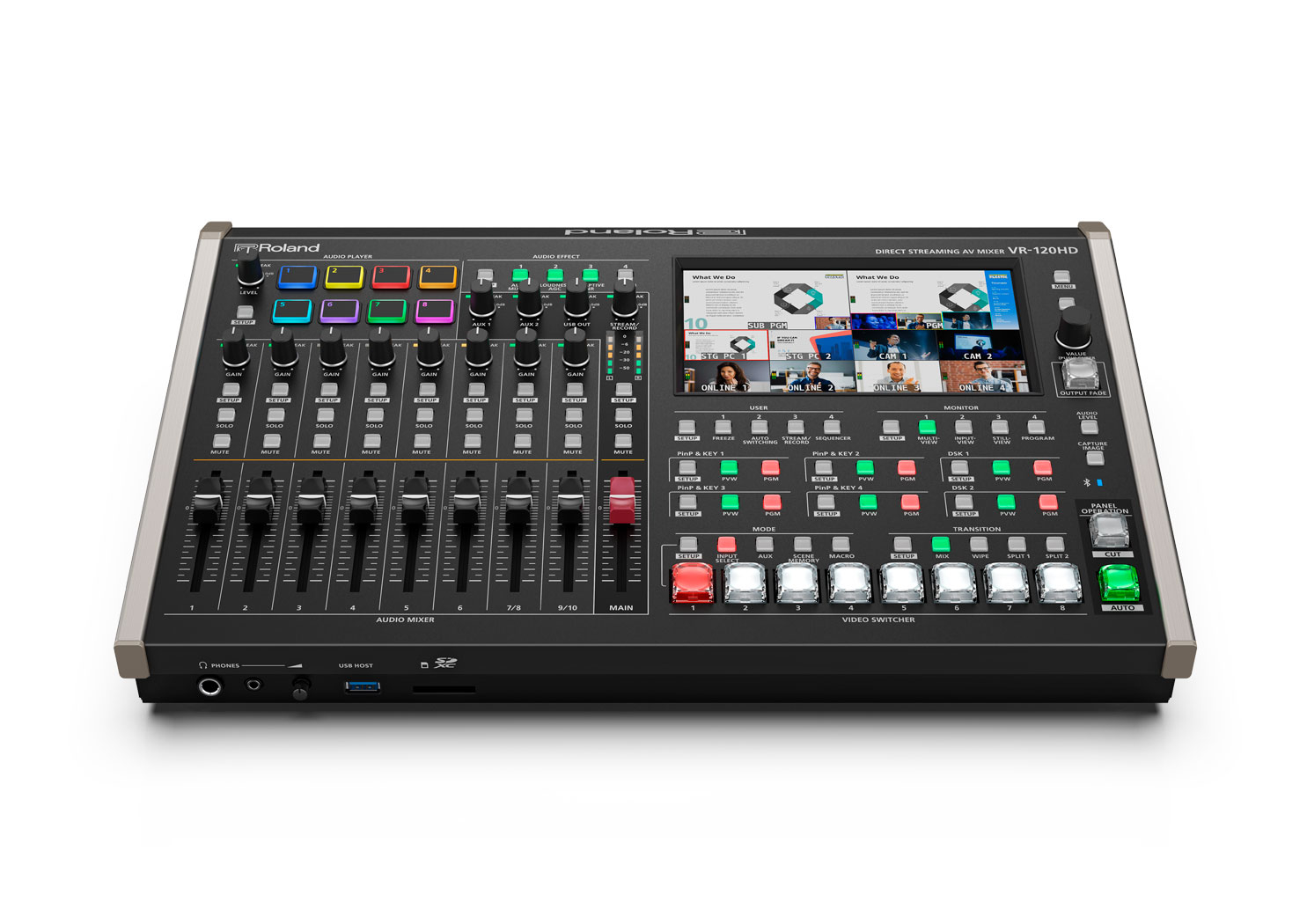

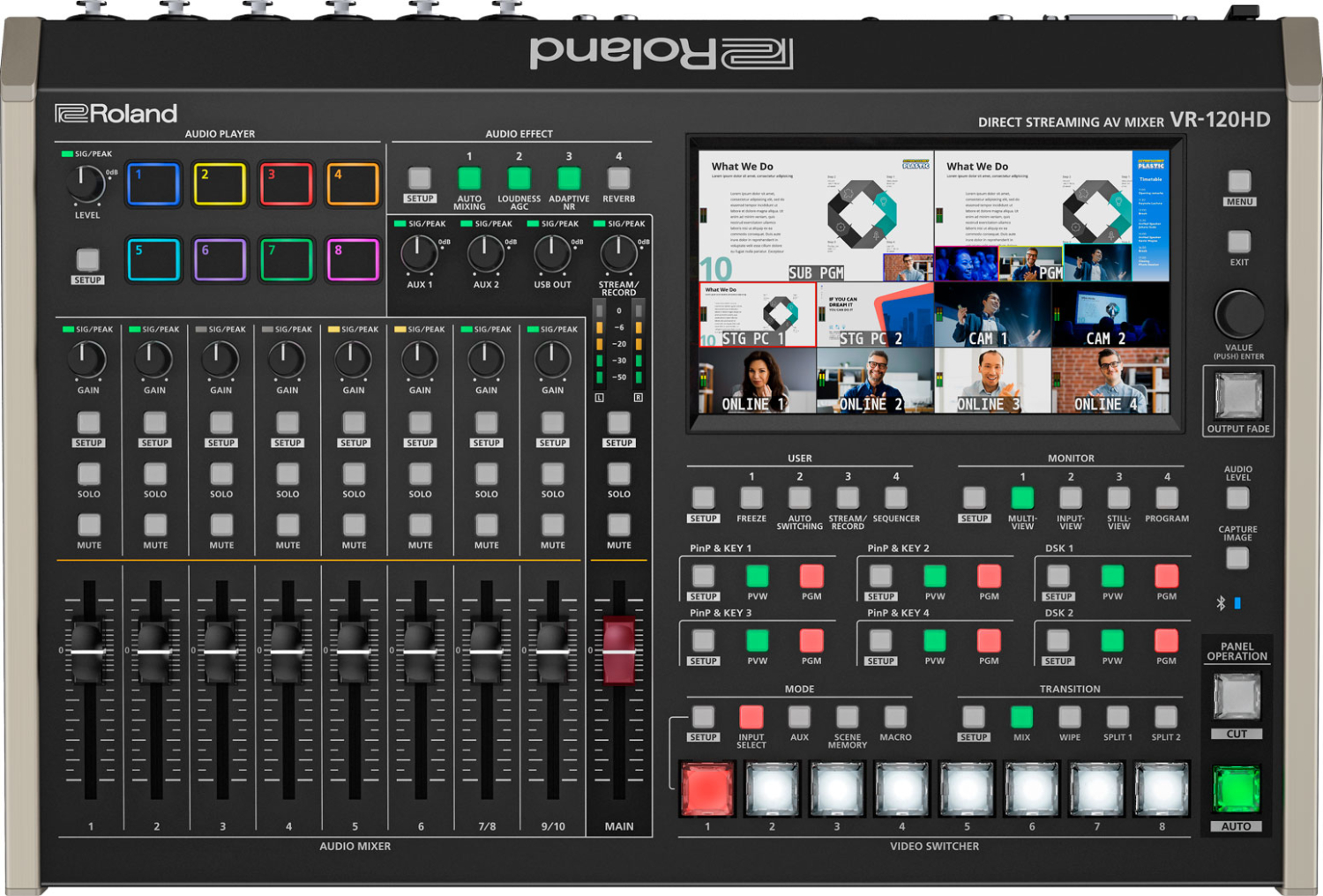

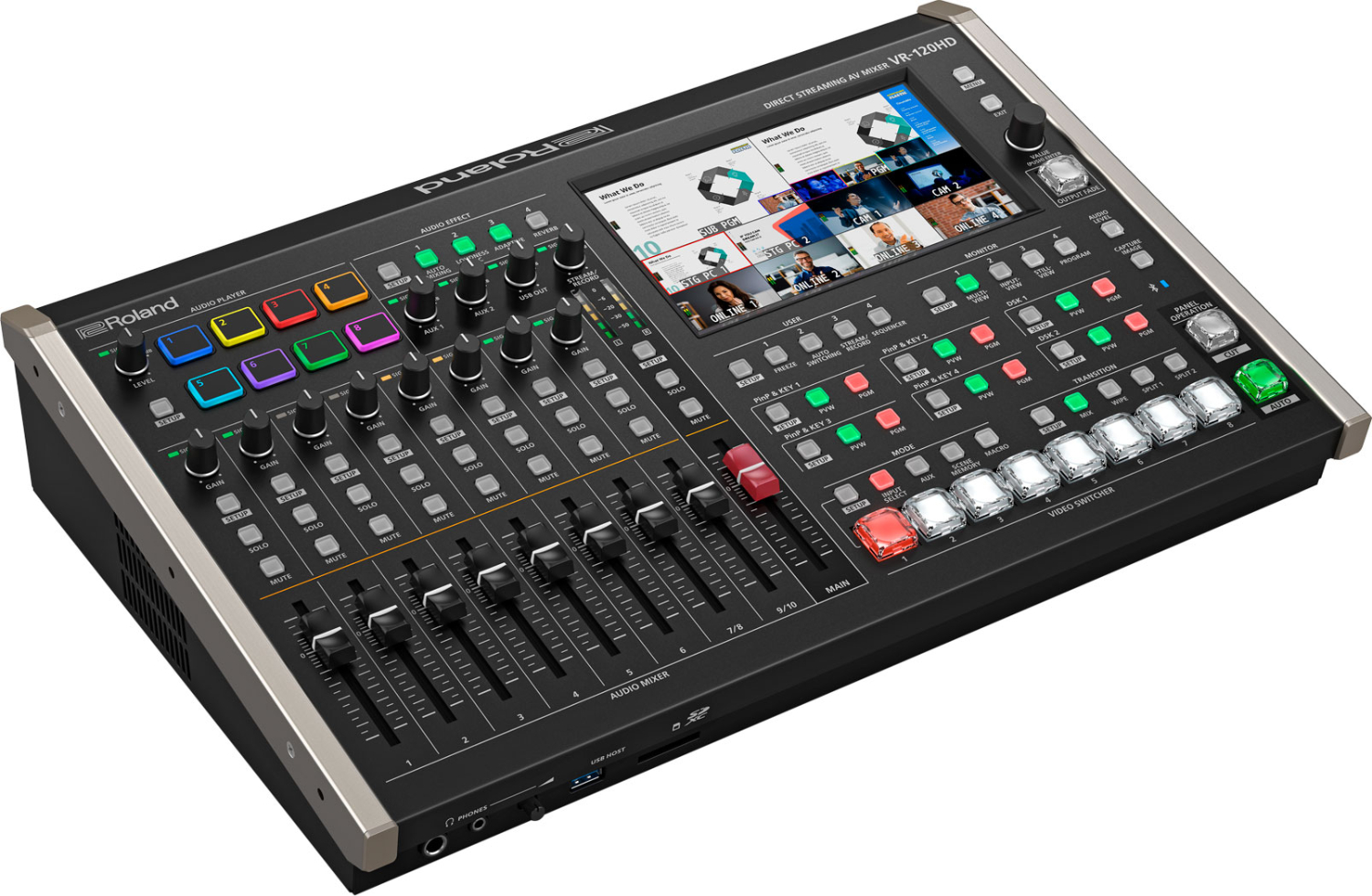

Roland VR-120HD

+7
  • New
  • Free transport
SKU: VR-120HD

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced…

More information

8 189 € with VAT 6 767.77 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VR-120HD
Add to Compare Price history
Product description SPECIFICATIONS

Product description

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

  • Portable hybrid event audio/video mixer with direct streaming encoders
  • Powerful live production automation with sequencing, macros, and scene memories
  • Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
  • Record streams directly to an SDXC card for archiving, editing, and distribution
  • Six 3G SDI inputs with frame rate converters
  • Six 1080p HDMI inputs with frame rate converters and real-time scalers
  • Support for cinema and broadcast frame rates
  • Eight-layer video effects engine
  • Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
  • Selectable output modes: Program, Sub-Program, Preview, three Aux buses, two DSK sources, and three Multi-View options
  • 42-channel digital audio mixer with advanced effects and processing
  • 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
  • Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
  • Audio Player function with eight trigger pads and onboard storage for 16 audio files
  • PTZ control for 12 cameras with support for multiple brands and mixed protocols
  • Large seven-inch touch screen with graphical menu
  • Extensive device control with Bluetooth, USB, RS-232, and LAN
  • Remote control software available for iPad, macOS, and Windows
  • Wireless and wired camera tally support

SPECIFICATIONS

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Channels: 12

Video Input Formats:
• HDMI IN 1–6: 480i/p, 720p, 1080i/p (various frame rates through 59.94/60/50 Hz, plus VGA–WUXGA up to 1920×1200)
• SDI IN 1–6: 720p, 1080i/p (various frame rates at 59.94/60/50 Hz)

Video Output Formats: HDMI OUT 1–3 & SDI OUT 1–3: 720p, 1080i, 1080p (59.94/60/50/29.97/30/25/23.98/24 Hz)

USB STREAM: 1080p/720p/480p at 59.94/60/29.97/30/50/25/23.98/24 Hz (uncompressed YUY2 & MJPEG)

Direct Stream: 720p/1080p at 59.94/60/29.97/30/50/25/23.98/24 Hz

Stream & Record:
• Protocols: RTMP, RTMPS, SRT (Caller/Listener)
• Containers: FLV (RTMP/RTMPS), MPEG-2 TS (SRT)
• Video: H.264 up to 20 000 kbps
• Audio: AAC-LC 16 bit/48 kHz up to 384 kbps
• Rec File: MP4; Audio Rec: WAV PCM 16 bit/48 kHz

Video Player/SRT In: MP4 H.264 ≤20 000 kbps to 1080/60p + AAC-LC 16/48 kHz; SRT In: MPEG-2 TS H.264/AAC-LC same limits

Still Image: BMP/PNG/JPG up to 1920×1080 px, 24-bit, 16 files internal, export to SD/USB (PNG alpha supported)

Video Effects: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types); PinP ×4, Keyer ×4, DSK ×2, FILL+KEY; Multi-View ×3; flip H/V; still capture/playback; output fade; test pattern; stream delay

Audio Processing: 24-bit/48 kHz; Channels: 42

Audio Formats:
• USB STREAM: PCM 16/48 kHz, 2 ch
• Bluetooth input: PCM 16/48 kHz, 2 ch
• HDMI IN: PCM 24/48 kHz, 2 ch; HDMI OUT: PCM 24/48 kHz, 8 ch
• SDI IN: PCM 24/48 kHz, 2 ch; SDI OUT: PCM 24/48 kHz, 8 ch

Audio Player: WAV PCM 16 bit/48/44.1 kHz, stereo, 16 tracks

Audio Effects: HPF, echo cancel, anti-feedback, gate, de-esser, compressor, EQ, delay, voice changer, auto mix; Master: reverb, GEQ, limiter, loudness AGC, ANR, LFC, delay

Common: Recording Media: SDHC/SDXC, USB; Scene Memory 32, Macros 100, Sequencer 1 000 steps; Panel lock, EDID emulator, auto switch/input detect, smart tally, remote camera (up to 12), external rec control; menu in EN/JP/SC

Video Connectors: HDMI IN 1–6 (A), SDI IN 1–6 (BNC)
Audio In: Analog IN 1–6 (XLR/TRS combo, 48 V/14 mA), IN 7–10 (RCA); USB STREAM (Type-C), Bluetooth, HDMI IN, SDI IN
Audio Out: XLR 1–2, RCA 3, PHONES (¼")
Other Connectors: USB HOST A, USB STREAM C, Bluetooth, CTL/EXP 1–2 (TRS), TALLY/GPIO DB-25, RS-232 DB-9, DIRECT STREAM RJ45, REF IN/THRU BNC

Audio I/O Characteristics: Input levels & impedances per channel, Output levels & impedances, Residual noise (–101 to –62 dBu typ.)

Bluetooth: v5.0 A2DP/GATT, SBC (SCMS-T)

Display: 7" WVGA (800×480) color touch

Power: AC adaptor, 3.0 A, 69 W

Operating Temp: 0–40 °C (32–104 °F)

Dimensions: 437×304×109 mm (rack 482×304×109 mm)

Weight (excl. adaptor): 5.3 kg (11 lb 11 oz)

Accessories: Startup Guide, Safety Leaflet, AC adaptor, power cord, rack angles ×2 + screws ×6

Options: Footswitch: BOSS FS-5U/FS-6/FS-7; Expression: EV-5/EV-30, FV-500L/H



Parameters

Parameters

Manufacturer: Roland
Category: Audio Mixers
