Roland V-60HD

  • New
  • Free transport
SKU: V-60HD

Live event production and streaming continues to grow, and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your setups and combines the best of both worlds with SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet, and other video sources. The combination of powerful audio features like multi-channel…

More information

4 829 € with VAT 3 990.91 € without VAT
Add to Compare Price history
Availability
on request
SKU:
V-60HD
Add to Compare Price history
Product description SPECIFICATIONS

Product description

Live event production and streaming continues to grow, and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your setups and combines the best of both worlds with SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet, and other video sources. The combination of powerful audio features like multi-channel embedded audio, XLR and RCA analog inputs, and de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and AUX Bus make the V-60HD ideal for a variety of live event production and streaming applications.

Corporate event production is the fastest growing live event space, with companies hosting town halls, meetings, training sessions, and new product announcements, both in person and streaming.

  • The V-60HD is portable and small enough to be used in multiple locations in an office or outside meeting location.
  • The four SDI inputs and two HDMI inputs are perfect for switching cameras and computers at the same time for dynamic presentations.
  • Not all cameras support full 1080p, so the de-interlacer on the SDI inputs allows you to mix and match 1080i and 1080p SDI video sources from multiple cameras without external converters.
  • Audio is easier to mix than ever before using the V-60HD’s Auto Mixing function. This automatically balances audio levels from multiple microphones and video sources, freeing up the operator to focus on video switching during the event.

Video communication helps improve the effectiveness of education when used for streaming lectures, assemblies, distance learning, sports, live performances, or theater productions.

  • Multi-destination outputs that include Program, Preview, and AUX buses make it easy to discreetly send the main output to the primary screen or livestream and notes to a presenter’s monitor.
  • Auto Mixing automatically adjusts audio levels based on weighting, ensuring even levels for the room mix, presenter recording send, livestream, or in-room speakers.
  • Educators can use the multi-channel audio embed function to record eight discreet audio channels to an SDI video recorder to aid in correcting sound issues in post-production or capture separate multi-language audio sources.
  • The V-60HD’s user interface is easy for students and novices to operate. It can also be controlled remotely from a computer through the LAN port using Roland’s Remote Control Software (RCS).
  • For fixed installations, the V-60HD can be remotely controlled through the RS-232 port using touch panel interfaces, making it easier to operate functions.

The V-60HD is ideal for multiscreen environments found in churches, conference centers, hotels, and trade show facilities where different content needs to be switched to independent screens.

  • Dedicated AUX buttons make switching to a second destination as easy as switching to the main screen.
  • A newly designed wireless tally system for iOS and Android devices makes for smoother events. This helps talent and camera operators identify which camera is currently selected for the program and which camera will be switched to next.
  • Auto Scan, integrated audio inputs, Auto Mixing, and powerful effects make the V-60HD an ideal streaming mixer solution, allowing you to remix stems from an audio console and adjust them for broadcast.

SPECIFICATIONS

Video Processing
4:2:2 (Y/Pb/Pr), 8-bit

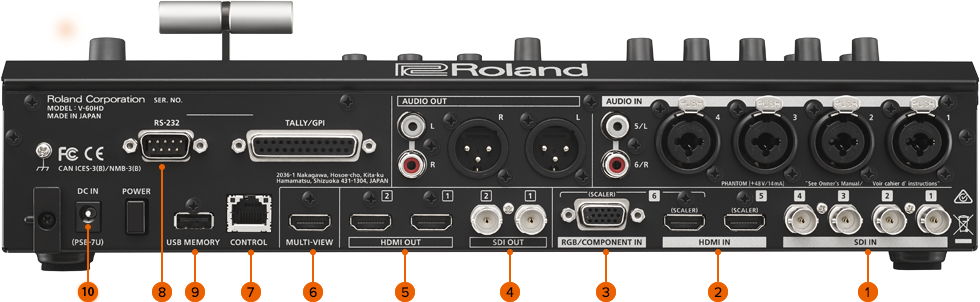

Input Connectors
SDI IN 1–4: BNC x4 (SMPTE 424M/425M-AB/292M)
HDMI IN 5–6: HDMI A x2 (HDCP, Multi-format)
RGB/COMPONENT IN 6: HD DB-15 x1 (selectable with HDMI 6)

Output Connectors
SDI OUT 1–2: BNC x2 (SMPTE 424M/425M-AB/292M)
HDMI OUT 1–2: HDMI A x2
HDMI MULTI-VIEW: HDMI A x1 (HDCP)

Input Formats
SDI 1–4: 720p (59.94/60/50), 1080i (59.94/60/50), 1080p (23.98/24/25/29.97/30/50/59.94/60)
HDMI/RGB 5–6: 480i/p, 576i/p, 720p, 1080i/p
VGA–WUXGA resolutions (up to 1920x1200/60 Hz), CEA-861-E, VESA DMT

Still Image Support
BMP/PNG/JPG, max 1920x1080, 24-bit color, up to 2 internal memory files, USB export (no PNG alpha)

Output Formats
SDI OUT 1–2: 720p, 1080i, 1080p
HDMI OUT 1–2: Matches system format (720p, 1080i/p @ 59.94 or 50 Hz)
HDMI Multi-View: 1080p (59.94/50)

Video Effects
Transitions: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)
Composition: PinP (square, circle, heart, diamond), SPLIT (4 types), DSK (luminance, chroma key)
Others: Flip H, Output fade, Still capture/playback, Test pattern

Audio Processing
24-bit/48 kHz sampling

Audio Formats
SDI IN: PCM, 24-bit/48 kHz, 2ch (SMPTE 299M)
SDI OUT: PCM, 24-bit/48 kHz, 8ch
HDMI IN/OUT: PCM, 24-bit/48 kHz, 2ch

Audio Input Connectors
Digital: SDI IN 1–4 (BNC), HDMI IN 5–6 (HDMI A)
Analog: AUDIO IN 1–4 (XLR/TRS combo w/phantom), 5–6 (RCA)
Phantom Power: 48V, 10 mA max per channel

Audio Output Connectors
Digital: SDI OUT 1–2, HDMI OUT 1–2, HDMI MULTI-VIEW
Analog: AUDIO OUT (XLR, RCA), PHONES (Stereo 1/4")

Audio Specs
Input Level: IN 1–4: -60 to +4 dBu (max +22 dBu), IN 5–6: -10 dBu (max +8 dBu)
Input Impedance: IN 1–4: 10kΩ/5kΩ (gain-based), IN 5–6: 15kΩ
Output Level: XLR: +4 dBu (max +22 dBu), RCA: -10 dBu (max +8 dBu)
PHONES: 92 mW + 92 mW (32Ω)
Output Impedance: XLR: 600Ω, RCA: 1kΩ, PHONES: 10Ω

Audio Effects
Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter

Other Connectors
USB MEMORY: USB A
TALLY/GPI: DB-25 (Tally: 12, GPI: 8)
RS-232: DB-9 (Remote)
CONTROL: RJ45 100BASE-TX

Other Functions
8 Preset Memory, Panel Lock, EDID Emulator, Smart Tally, Auto Scan, Remote Camera Control

Display
Graphic LCD, 128x64 dots

Power & Environment
Power Supply: AC adaptor
Current Draw: 3.1 A, Power: 37 W
Operating Temp: 0–40°C / 32–104°F

Dimensions & Weight
Size: 356 x 221 x 96 mm / 14-1/16 x 8-3/4 x 3-13/16 in
Weight: 3.0 kg / 6 lbs 10 oz

Included Accessories
Owner's Manual, AC adaptor, Power cord
