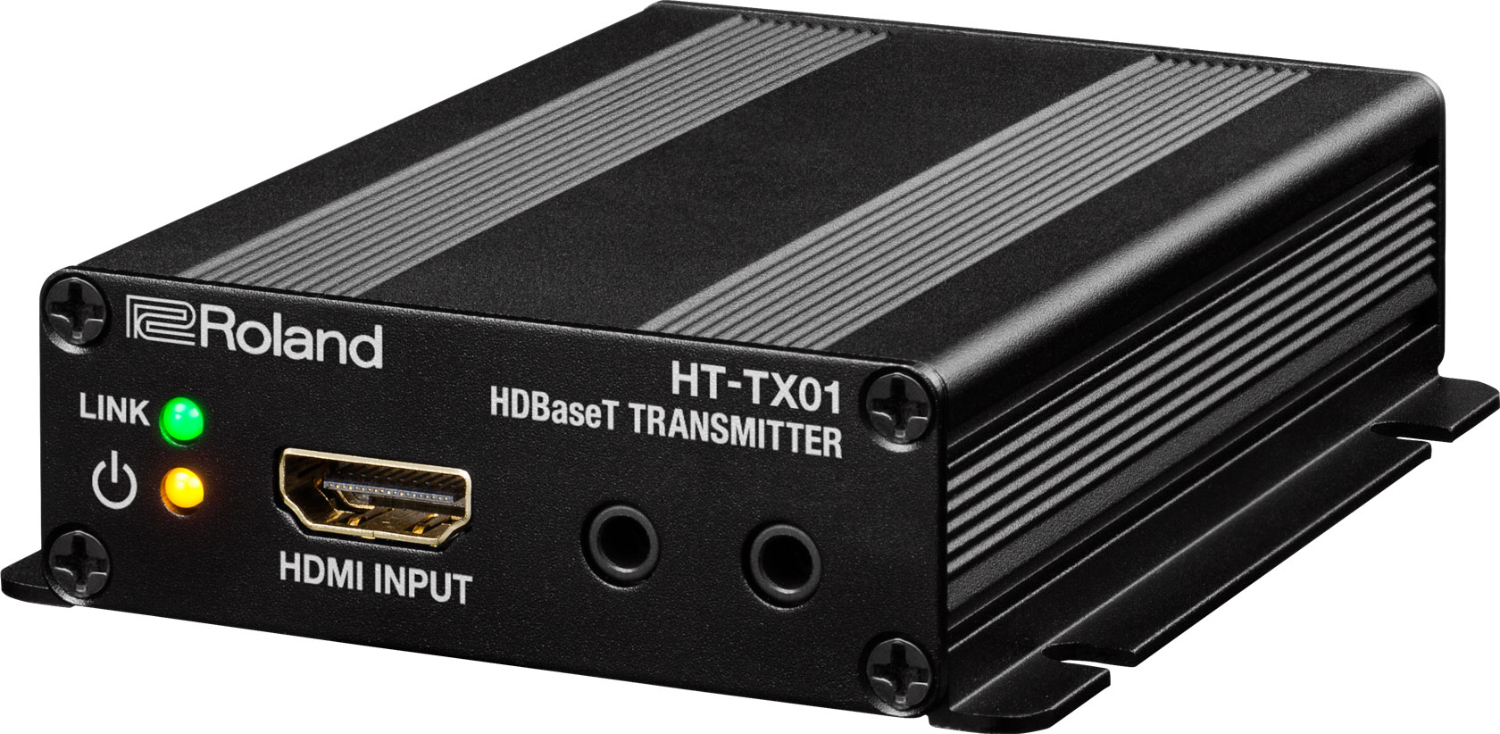

Roland HT-TX01

  • New
SKU: HT-TX01

HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.

More information

409 € with VAT 338.02 € without VAT
Add to Compare Price history
Availability
on request
SKU:
HT-TX01
Add to Compare Price history
Product description SPECIFICATIONS

Product description

HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.

Roland HDBaseT Transmitter

Roland HD BaseT solutions empower the sharing of ideas in huddle & meeting rooms and supports AV installations with simplified distribution of the presenter’s computer to a video switcher or a digital projector hundreds of feet away.

Long-distance HDMI distribution

Pair the Roland HT-TX01 Transmitter with the Roland HT-RX01 Receiver to convert and transmit uncompressed High Definition HDMI video, audio and RS-232 control up to 100 meters using industry standard Cat5e cable.

  • Converts HDMI input to HDBaseT signals
  • Maximum 1080/60p and WUXGA support for HDMI
  • HDCP compliant
  • Capable of RS-232C transmission

SPECIFICATIONS

Input Formats:
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i/p, 1080/50i/p,
640x480, 800x600, 1024x768, 1280x768, 1280x1024, 1366x768, 1400x1050, 1600x1200, 1920x1200
  • RGB: VESA DMT v1.0 Rev 11
  • Max refresh rate: 75 Hz (except 1600x1200 & 1920x1200 at 60 Hz)
  • 1920x1200 @ 60 Hz uses reduced blanking
Audio Formats:
PCM (up to 8ch), Dolby Digital, TrueHD, DTS-HD Master AudioInput Connectors:

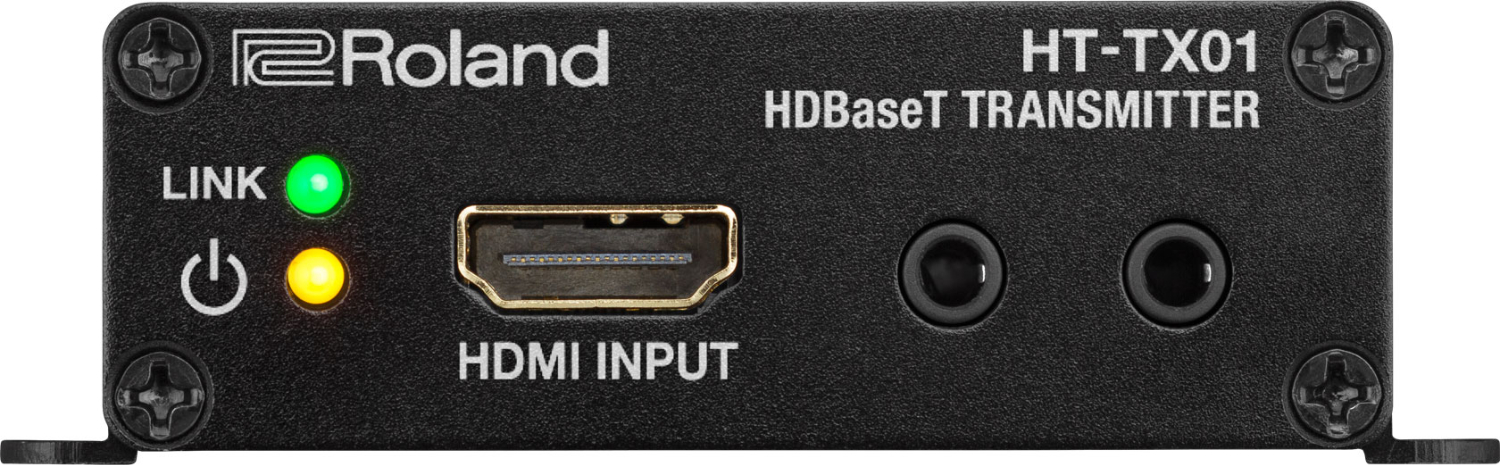

  • HT-TX01: HDMI x1 (Type A, 19-pin)
  • HT-RX01: RJ45 x1
Output Connectors:

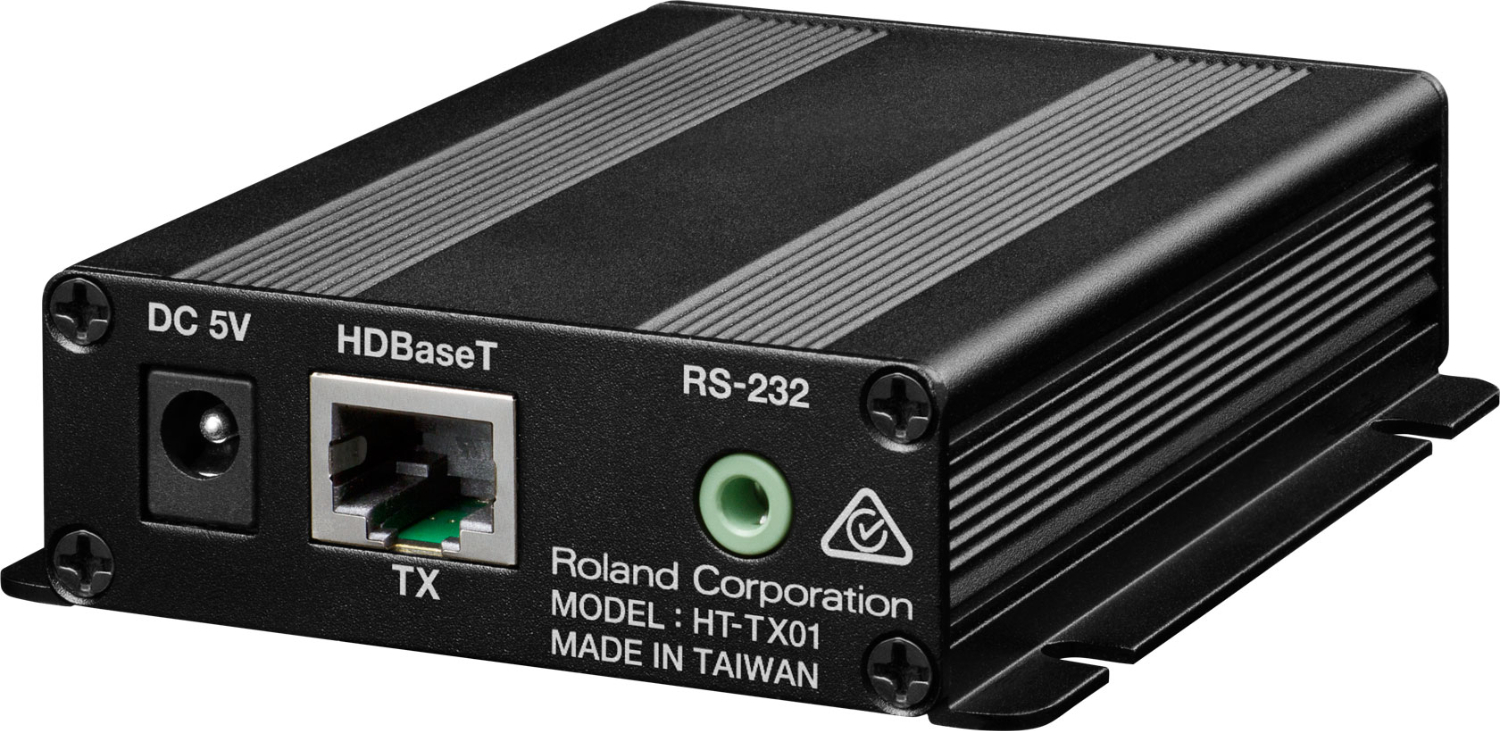

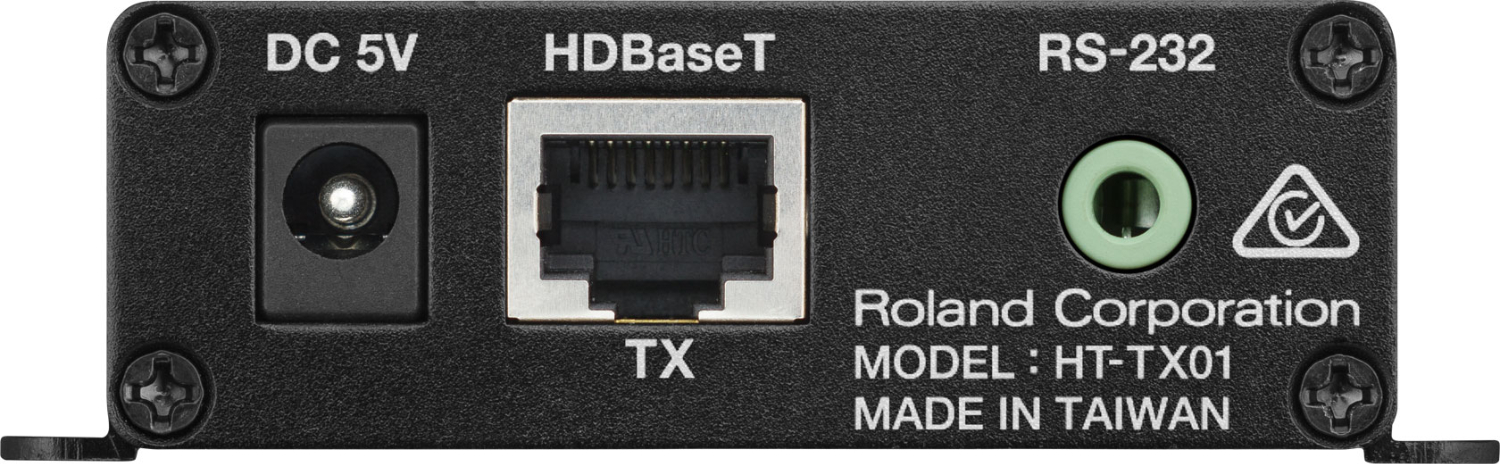

  • HT-TX01: RJ45 x1
  • HT-RX01: HDMI x1 (Type A, 19-pin)
Other Connectors:
  • RS-232 x1 (9-pin D-sub, requires RS-232 cable)
Transmission Distance:
  • Max 100 m (328 ft) over Cat 5e or higher shielded LAN cable
  • Distance depends on cable quality
Operating Environment:
  • Temp: 0–40°C / 32–104°F
  • Humidity: 10–85% (no condensation)
Storage Environment:
  • Temp: 20–60°C / 4–140°F
  • Humidity: 10–85% (no condensation)
Power Supply: AC adaptor
Current Draw: 2 ADimensions (W x D x H):
  • 81 x 93 x 24 mm
  • 3-3/16" x 3-11/16" x 1"
Weight (excl. AC adaptor):
  • 300 g / 11 oz
Accessories:
  • AC adaptor
  • 3 plug types
  • RS-232 conversion cable (2 m / 6 ft 6 in)
  • Ferrite core x3
  • Owner's manual
Parameters

Parameters

Manufacturer: Roland
Category: Wireless video transmission
