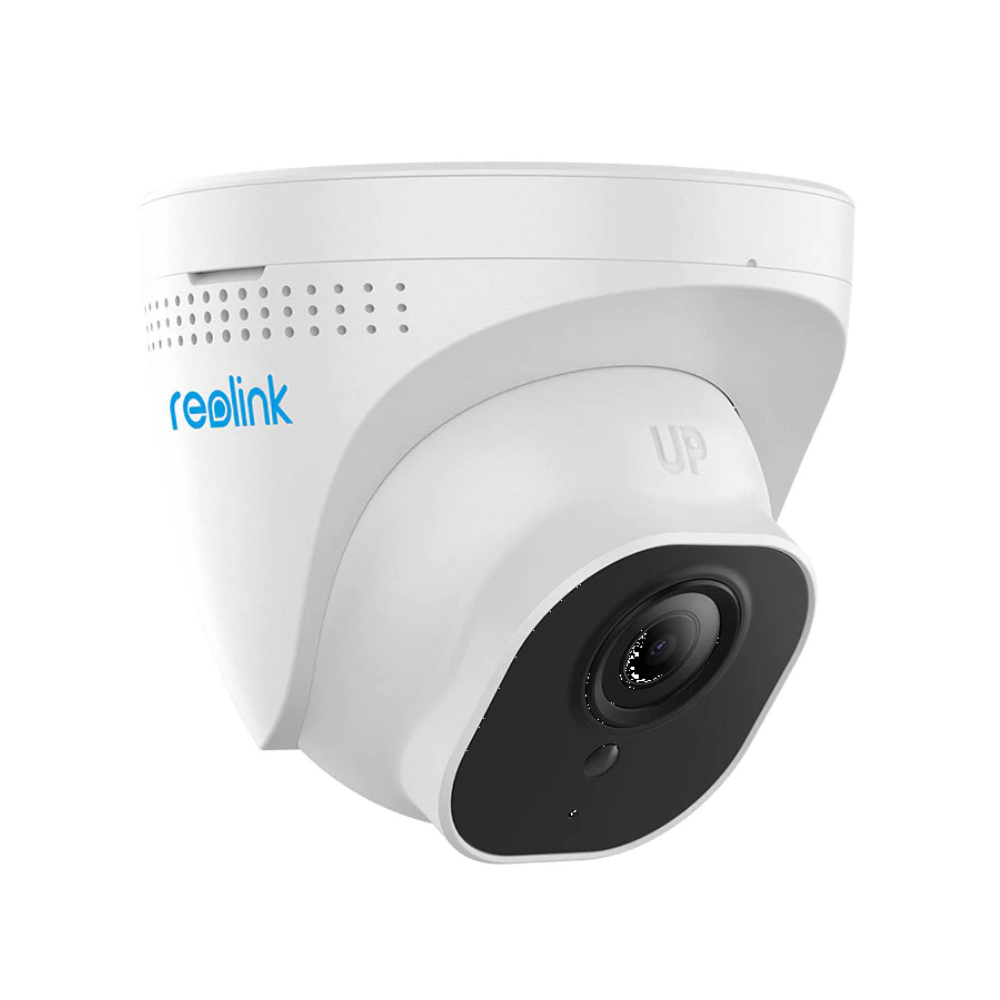

Reolink RLC-520

SKU: RLC-520

This product is no longer offered. Please select from the alternatives below.

Top accessories for Reolink RLC-520

Reolink Home Hub

Wireless Security Center with Encrypted Local Storage and Multi-Device Managemen

111 €

3-5 days

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Reolink security camera with 2560x1920 (5.0 Megapixels) at 30 frames/sec resolution, 80° viewing angle, and 18 powerful infrared LEDs for night mode with a range of up to 30 m. In addition, advanced noise reduction technology ensures clear, sharp images even when shooting in low light. IP66 certification guarantees weather resistance -- you can install the cameras virtually anywhere! The RLC-520 cameras are designed for ReolinkNVRs/security systems and can be operated stand-alone..

PACKAGE CONTENT

1x RLC-520
1x waterproof grommet
1x power cable 1m
1x quick start guide
1x mounting hole template
1x pack of screws

SPECIFICATIONS

Image sensor
1/2.7" CMOS sensor
Video resolution
2560 x 1920 (5.0 megapixels)
Video format
H.264
Noise reduction
3D DNR
Lens
f=4.0 mm Fixed, F=2.0, with infrared cut
Viewing angle
Horizontal: 80°, Vertical: 58°
Frame rate
Main stream: 2 fps - 30 fps (preset: 30 fps), secondary stream: 4 fps - 15 fps (preset: 7 fps)
Night vision
30 meters (LED: 18pcs/14mil/850nm)
Audio
Built-in microphone
Protocols and Standards
HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Local storage
Insertable microSD card up to 64 GB
Interface
- RJ45 10M/100Mbps connector - Power - Micro SD card slot - Built-in microphone - Reset button
User access
20 users (1 administrator account and 19 user accounts); support up to 12 simultaneous video streams (10 sub-streams and 2 main streams)
Power
DC 12.0V⎓1A, <8W, IEEE 802.3af, 48V Active
Dimensions
Φ105 x 93 mm
Weight
385g
Operating system support
PC: Windows, Mac OS; Smartphone: iOS, Android
Web browser support
IE, Edge, Chrome, Firefox, Safari
Operating temperature
-10° to 55°C
Operating humidity
10 % ~ 90 %
Waterproof
IP66 certification
