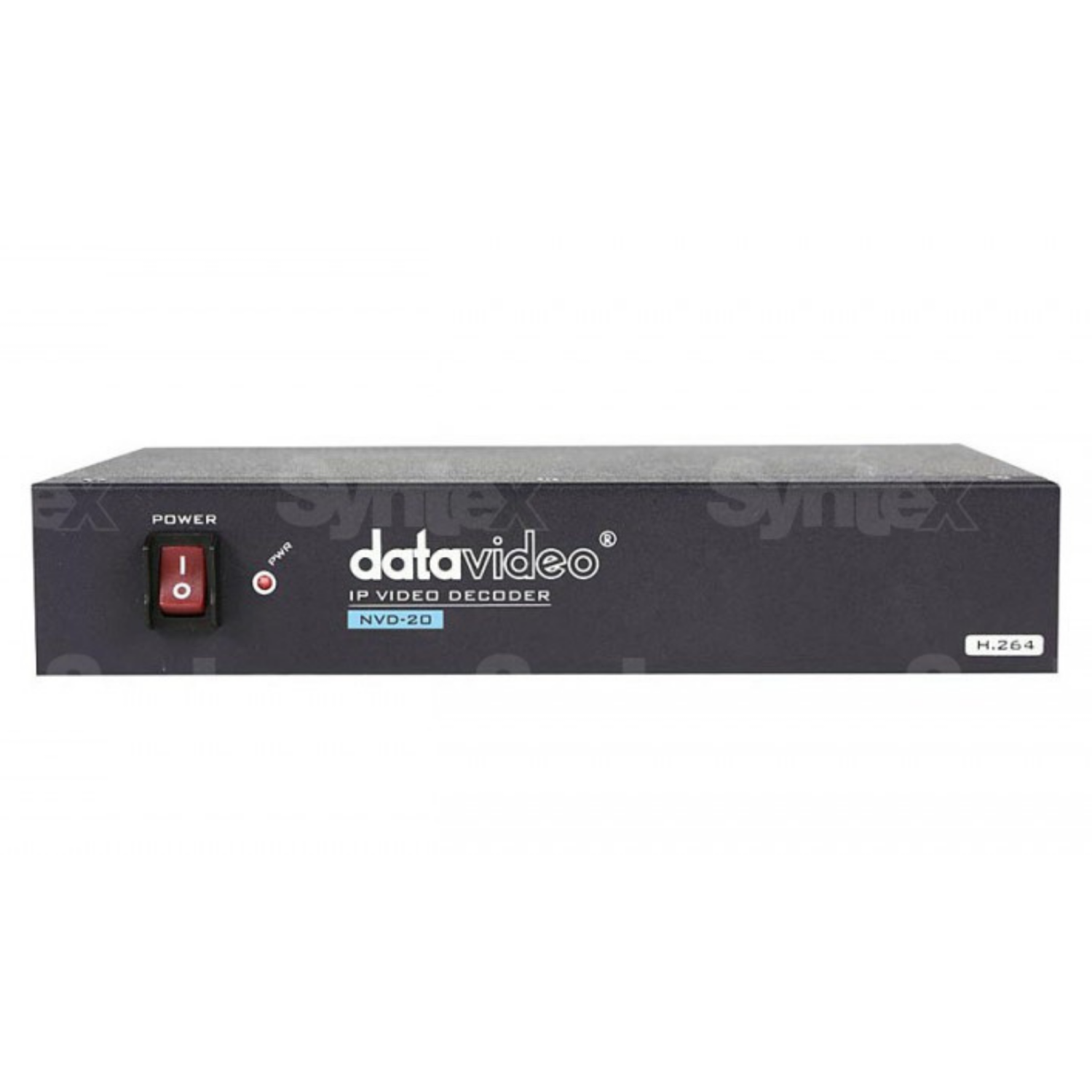

Datavideo NVD-20

The Datavideo NVD-20 is a wired IP video decoder with HDMI, Composite and analogue audio outputs. The NVD-20 decodes all common protocols including RTP/RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS, both unicast and multicast, and can output SD/HD video at resolutions up to 1080p60. The NVD-20 is the perfect partner to the Datavideo NVS-20 IP encoder allowing Full HD point to point video links over Ethernet, Wi-Fi or the Internet.

Together with the Datavideo NVS-20 video streaming server, the NVD-20 decoder can form a Full HD point to point video link over Internet, Ethernet, or Wi-Fi networks. The NVD-20 decoder can decode IP streams (including RTP/RTSP, RTMP, UDP, TCP, HTTP and MPEG-TS) of SD/HD video streamed across 10/100Mb Ethernet networks. It features a built-in video scaler, excellent image picture quality and low delay operation. Decoded video is present on the built-in HDMI and Composite outputs, audio is supported as well.



Features:
Operates on standard 10/100Mb Ethernet networks
Excellent image quality with very low delay
Unicast and multicast support
Supports RTP/RTSP (Unicast/Multicast), RTMP, UDP (Unicast/Multicast), TCP, HTTP, HLS and MPEG-TS
Feature-rich WebUI for configuration and control
Built in video scaler
Supports Full HD video and audio
Supports HDMI and Composite video output
Supports simultaneous digital embedded and analogue audio output
Small form factor, rack mountable using RMK-1
12V DC input
