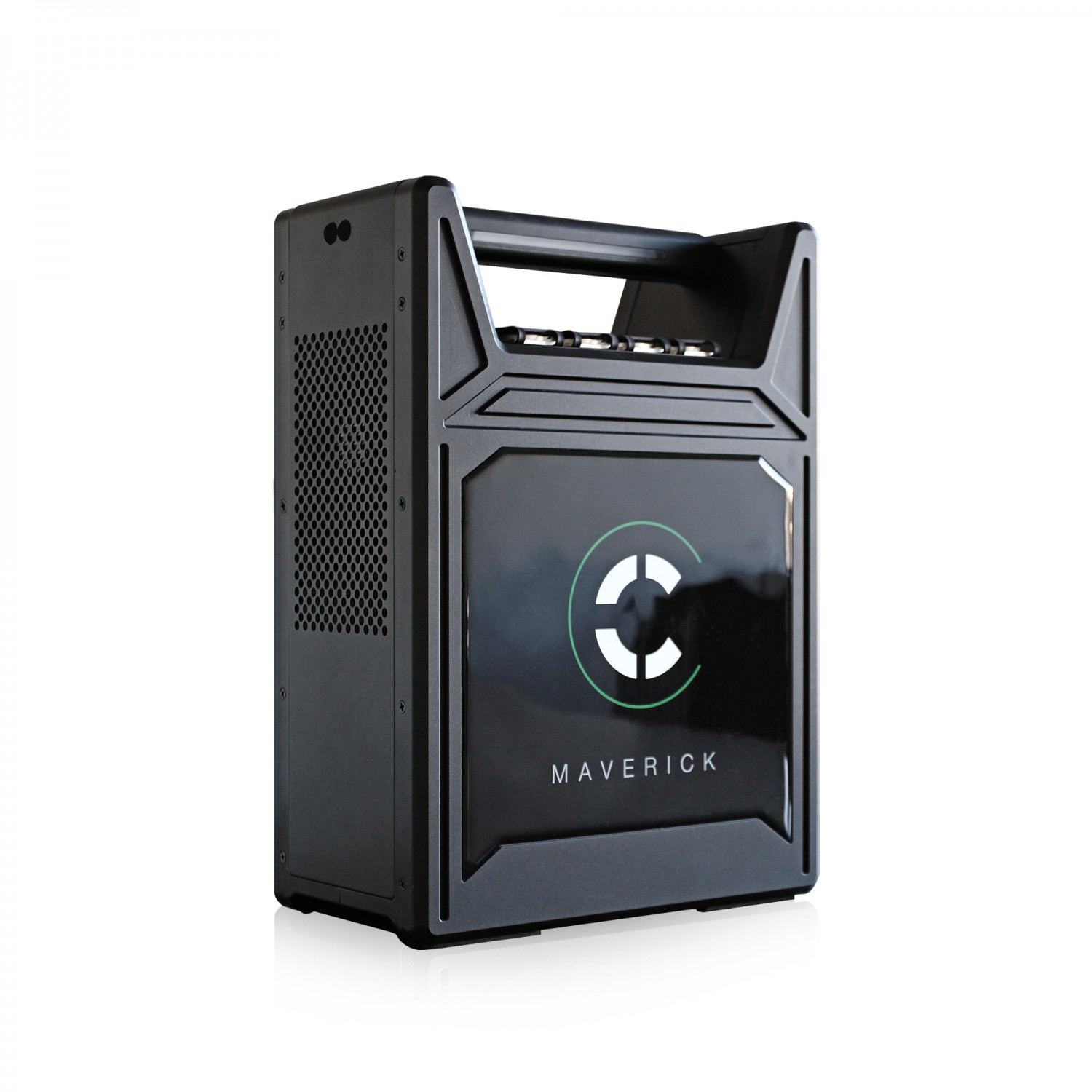

Core SWX MV6 Maverick Block Battery

Nickel Metal Hydride, travel safe block battery with built-in charging.

The Maverick battery pack is the next generation, all encompassing block battery system for cinema and lighting applications. Built for high demand situations, the MV6 can sustain up to 20A draw on both 14v and 28v outputs simultaneously, plus provide USB and P-Tap outputs. Built with premium Nickel Metal Hydride cells from Japan, this pack will sustain several thousand cycles of usage with minimal degradation and allow for easy air shipping and travel.

Being a complete mobile power station means you must be able to power all devices on location. The MV6 includes 2 P-Tap outputs (12-17V=) to power auxiliary devices and a 5V USB output to charge mobile devices. The green Smart-Tap can also provide battery diagnostics on the internal cell packs within the unit and the USB doubles as a firmware upgrade port allowing fast updates by plugging in to a PC.

Core SWX designed the MV6 understanding the need for predictive service. The modular build allows for quick service and if necessary, replacement of the charger module and battery cells. Less downtime and labour time, equates to more uptime, useability and ROI. Understanding many already have shipping cases from their older block battery packs, the MV6 was designed to fit in legacy shipping cases.

The Nickel Metal Hydride cell composition allows for easy shipment and air travel. The form factor also works with the existing dolly install base making the Maverick and "on-dolly" power station. The MV6 also features a Runtime LCS similar to that of Core SWX on-board packs. The LCD provides 3 phase status reporting.

The MV6 has a standard IEC AC input for charging from AC Mains. Plug the unit in to 110-240V AC and it will charge back up in 5hrs. An LEC array in the handle illuminates when charging to display charge status from afar. The LED array can also display capacity status when in use. A recessed switch in the handle allows for control of the lED brightness as well as disabling the LED array.

Cell Chemistry: Nickel Metal Hydride, Travel safe
Capacity: 605 Wh (14.4V, 42.0 Ah, Max rating 639 Wh)
Size: 9.56” x 13.7” x 5.3”
Weight: 28.3 lbs
Voltage Output: 2x XLR4p @ 14V (12-17V=), 2x XLR3p @28V (regulated)
Max Load: 40A (20A @ 14v, 20A @ 28v)
Built-in Protections: Temperature (internal), Voltage (internal), Current (resettable exterior and internal)
Capacity Monitoring: Backlit LCD and LED Handle
Aux Output: 2x P-Tap (10A, 14.4v unregulated)
USB Output: 1x USB-A (5V, 3A)
Charge Time: 5 hrs with built-in charger
AC Mains Input: 100-240VAC 50/60Hz
Build: Cast and Sheet Aluminum
