Canare BCJ-JRUD

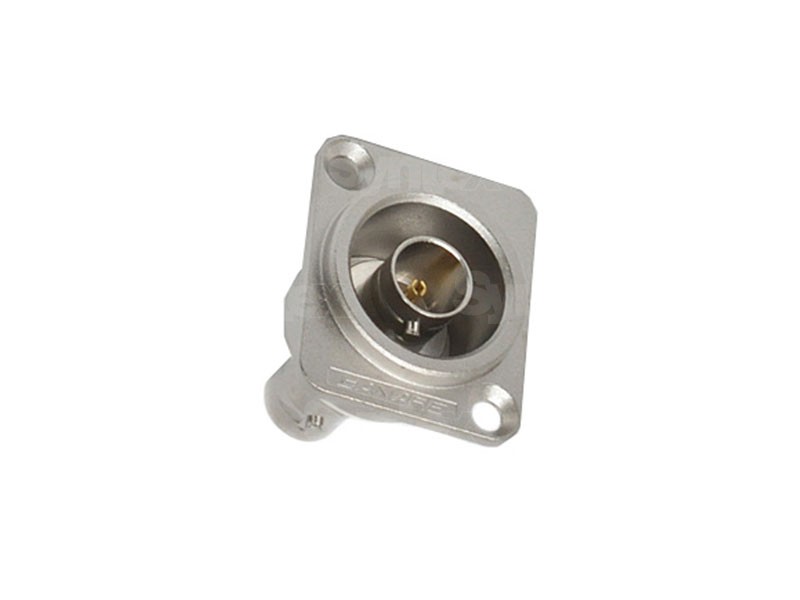

Canare BCJ-JRUD is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector, now with specific dimensions to coincide with Neutrik "D" Series measurements.

Canare BCJ-JRUD is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector, now with specific dimensions to coincide with Neutrik "D" Series measurements.

Applications:

• Headends
• Multimedia Edit Suites
• Master Control Rooms
• Satellite
• TelCom
• Broadband

Features:

• Jack to Jack or Jack to Solder
• Mounts in Common Canare Hole Punch
• Totally Isolated from Panel
• Flush mount to avoid impact

Specifications:

• Bandwidth VSWR Return Loss DC-2GHz: 1.1  >26dB
• Center Contact Material / Plating: Beryllium Copper/ Gold
• Body/ Material Plating: Brass/Nickel
• Dielectric: PTFE
• Flange Material /  Plating: DieCast AL / Nickel
• Insulation Resistance at 500V DC: >1000 MegaOhms
• Voltage Rating for 1 Minute: 1500V AC(rms)
• Center Contact Resistance: <6 miliOhms
• Outer Contact Resistance: <3 miliOhms
