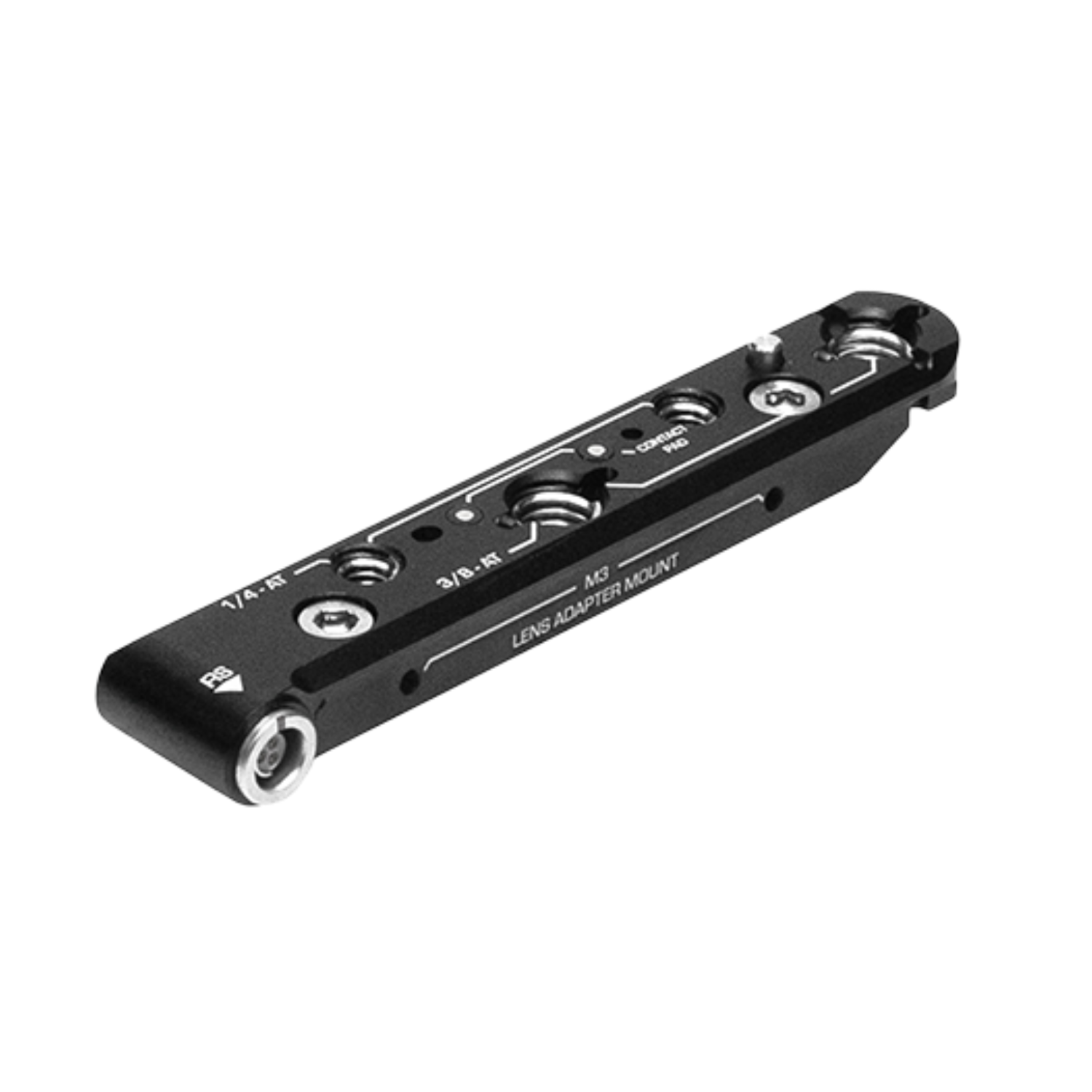

Add a NATO compatible Top Plate with Run/Stop connectivity for the RED KOMODO® when using FIZ, handgrips or gimbals. The RED Outrigger handle can be attached on top for a wire-free Run/Stop connection using the pogo pins.
This Run/Stop Top Plate attaches to the RED KOMODO®, providing a secure mounting point for top handles and other NATO based accessories.
COMPATIBILITY
Pin 1: Ground
Pin 3: R/S
For cforce mini RF: Connect Cam cable to RS (not Lbus)
For ARRI LCA: Connect CAM to RS with CAM pins 6 and 8 wired to opto switch
For Tilta Nucleus-M: Use 3-Pin Fischer cable #RS-03-AM
For Tiltaing Side handle: Use 3-Pin Fischer cable #RS-TA3-AM3
When it comes to rigging, you can choose from threaded points or the integrated NATO rail. All threaded points are stainless-steel helicoiled for added strength. Helicoil fittings are crucial to prevent thread stripping or binding. An important factor to consider when constantly changing rig configurations.
The Top Rail can be used with the NATO top handle & 15mm top bar bracket, or any other standard NATO accessories. The rail also provides mounting points for the LeftField range of adapter supports.
Every part of our LeftField Komodo system has been machined and hand-finished in our single factory in Church Crookham. The Run/Stop Top Plate comes with our famous Bright Tangerine Support and the addition of a 2-year warranty.
