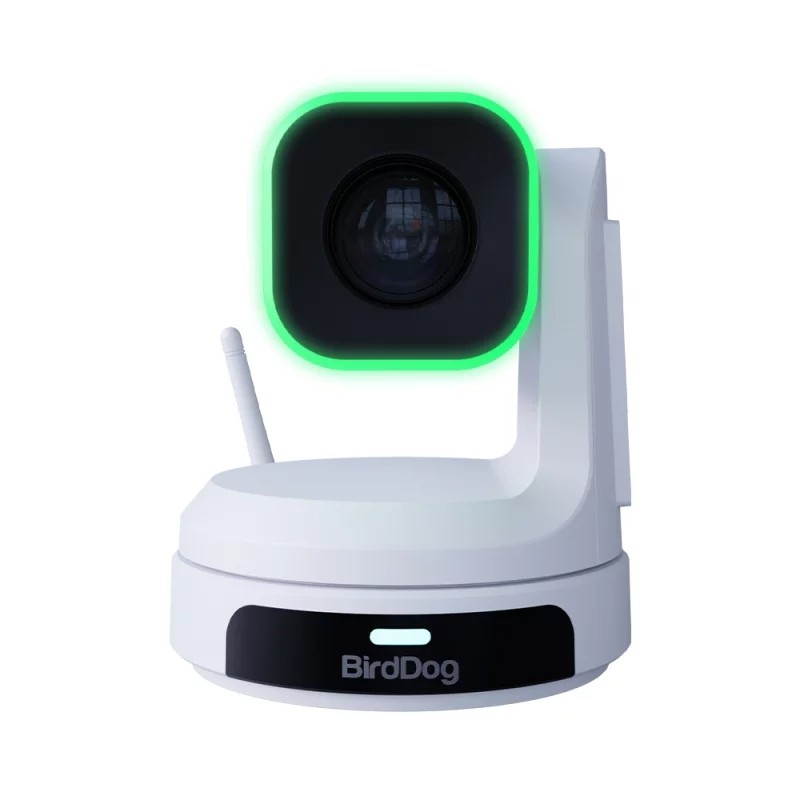

BirdDog X1 White. 1080P PTZ Camera with 20x Zoom

X1 is a WiFi-enabled PTZ camera from BirdDog with 20x optical zoom and Full HD resolution. It features an integrated NDI decoder, specifically designed for Confidence Monitoring, backhaul transmissions, or use with teleprompters. This allows all functions to be enabled through just one…

More information

1 139 € with VAT 941.32 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

X1 is a WiFi-enabled PTZ camera from BirdDog with 20x optical zoom and Full HD resolution. It features an integrated NDI decoder, specifically designed for Confidence Monitoring, backhaul transmissions, or use with teleprompters. This allows all functions to be enabled through just one cable.

The camera is NDI-capable and does not overload the network thanks to NDI|HX3 compression, while maintaining image quality. Whether for live events, moving environments, hunting, or sports: the AI tracking technology allows the camera to intelligently track subjects in real-time.

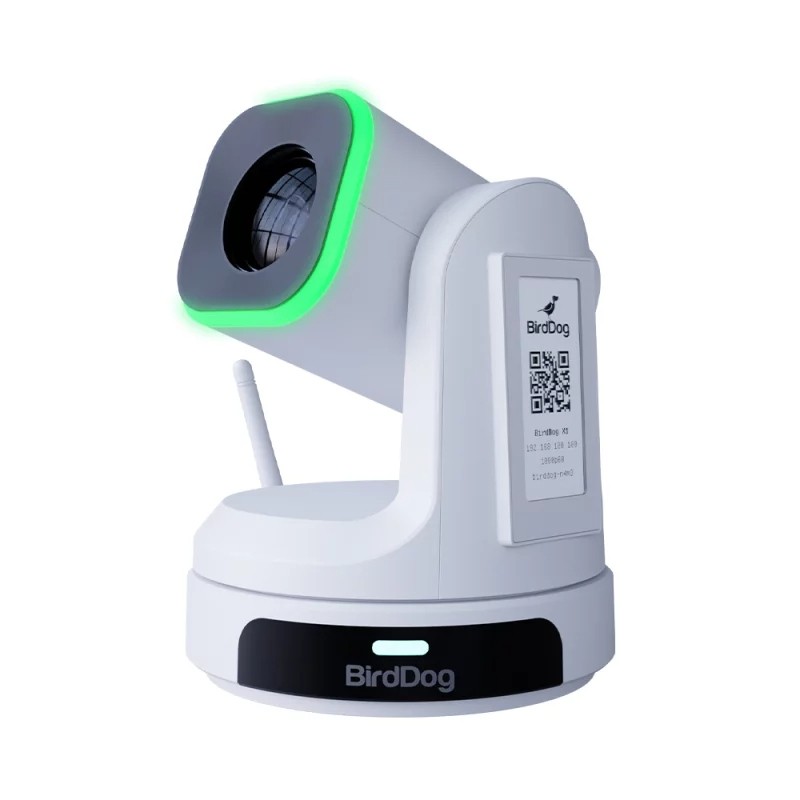

Designed for live productions, the PTZ camera also features a highly visible Tally Light. The E-Ink label allows for network address capture for access to controls and the creation of customizable logos to support any brand image. Thanks to this feature, each camera can be identified even when turned off. In addition to WiFi functionality, the X1 also includes regular Ethernet with PoE.

The camera is available as the X1 with 20x zoom in HD and as the X1 Ultra with 12x optical zoom in UHD.

Features:

  • WiFi-enabled PTZ camera with 20x zoom in Full HD
  • NDI | HX3
  • Integrated NDI decoder
  • AI tracking
  • Tally Light
  • E-Ink label

PACKAGE CONTENT

  • 1x X1 camera
  • 1x Remote control
  • 1x DC 12V power supply
  • 1x Mounting screws
  • 1x Rear silicone labels
  • 1x USB cable

SPECIFICATIONS

  • Image sensor: Sony 1/2.8'' CMOS FULL HD
  • Lens: f = 5.5 mm - 110 mm
  • Optical zoom: 20x
  • Video formats: 1080p @ 60/50/30/25fps
  • 720p @ 60/50/30/25fps
  • Horizontal field of view: 55.8 degrees (W) - 3.2 degrees (T)
  • Vertical field of view: 32.2 degrees (W) - 1.8 degrees (T)
  • Diagonal field of view: 61 degrees (W) - 3.64 degrees (T)
  • Aperture: T1.6 - T3.5
  • Focus: Auto, Manual
  • Effective pixels: 2.07 MP
  • Pan/tilt rotation: ±175 degrees, -90 degrees ~ +90 degrees
  • Pan control speed: 0.1 - 80 degrees/sec.
  • Tilt control speed: 0.1 - 60 degrees/sec.
  • Preset number: 255 presets

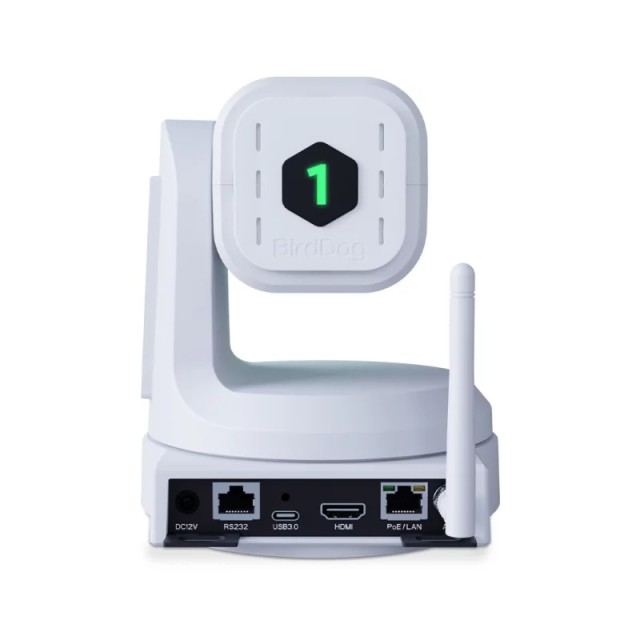

  • Video output interfaces: HDMI, USB-C, Network
  • Video compression format: H.264, H.265
  • Network interfaces: 100M adaptive Ethernet port; PoE IEEE802.3af, Wi-Fi IEEE 802.11ac Encoder network protocol: NDI|HX2, NDI|HX3, RTSP, RTMP HDMI decoder network protocols: NDI|HX2, NDI|HX3
  • Input voltage: DC 12V, PoE IEEE802.3af Input current: 2.0A (max.)
  • Power consumption: 13W (max.)
  • Input current: 2.0A (max.)
  • Power consumption: 13W (max.)
  • Operating temperature: -10°C ~ +40°C
  • Dimensions (LxWxH): 17.16 cm x 19.26 cm x 17.16 cm / 26 cm x 21.7 cm x 19.7 cm (Unpacked / Packed)
  • Net and gross weight: 1.35 kg / 2.05 kg (Net/Gross weight)
Parameters

Parameters

Manufacturer: BirdDog
Category: Uncategorized
