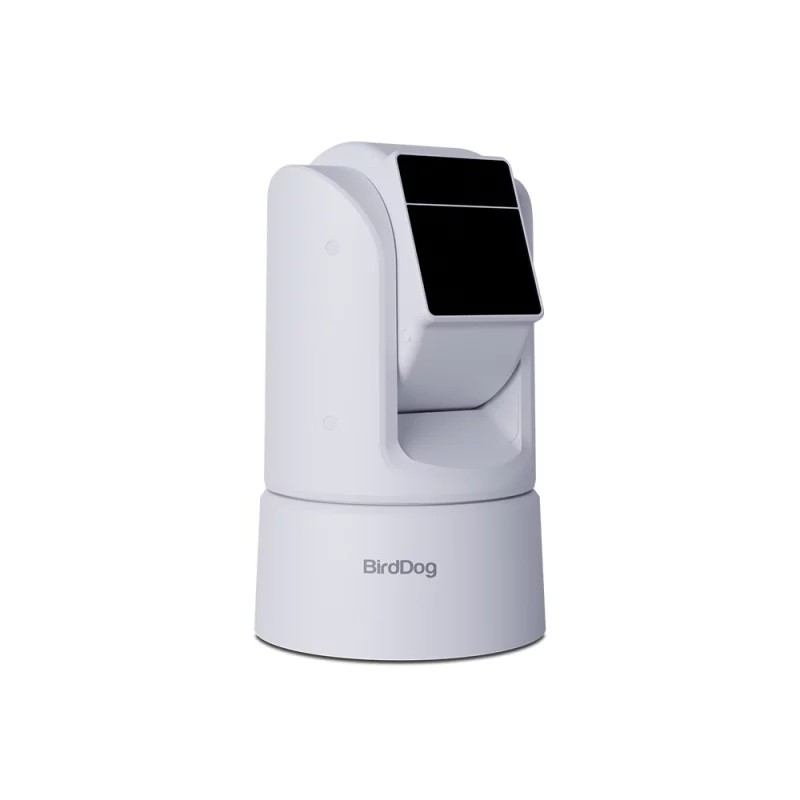

BirdDog O4 Outdoor Camera - White

  • New
  • Free transport
SKU: BD-BDO4W
This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS

Product description

BirdDog O4 is anoutdoor PTZ camera designed for real-world deployment. Its die-cast IP66-rated housing operates in temperatures ranging from -40°C to +60°C and features a heater and hydrophobic lens coating to keep the optics clear in rain, dust, or snow. Capture sharp, accurate color images in 4K60 resolution on a 1/1.8" sensor and capture the action from a distance with 30× optical zoom (60× in HD). When the light fades, a precise 500m IR laser and black-and-white night mode ensure visibility.

Installation is quick and straightforward: all inputs and outputs are located inside a sealed chassis with strain relief and three weatherproof flanges; power is supplied via PoE++ or external DC power. The O4 simultaneously streams Full NDI® and NDI® HX3 and can simultaneously broadcast NDI plus SRT/RTMP/RTSP. With 12G-SDI, HDMI, and SFP+ fiber and adjustable AI tracking profiles, the O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.

Features:

  • IP66 weatherproof enclosure with an operating range of -40°C to +60°C and built-in heater.
  • Hydrophobic smudge-resistant front glass for clear images without wipers.
  • 30× optical zoom (60× in HD) for long-distance shooting.
  • 500 m infrared laser night vision with automatic B/W mode and IR cut filters.
  • 1/1.8" CMOS sensor capturing 4K60 with wide dynamic range.
  • Simultaneous Full NDI® and NDI® HX3 streaming.
  • Dual streaming options: simultaneous NDI and SRT/RTMP/RTSP transmission.
  • 12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installations.

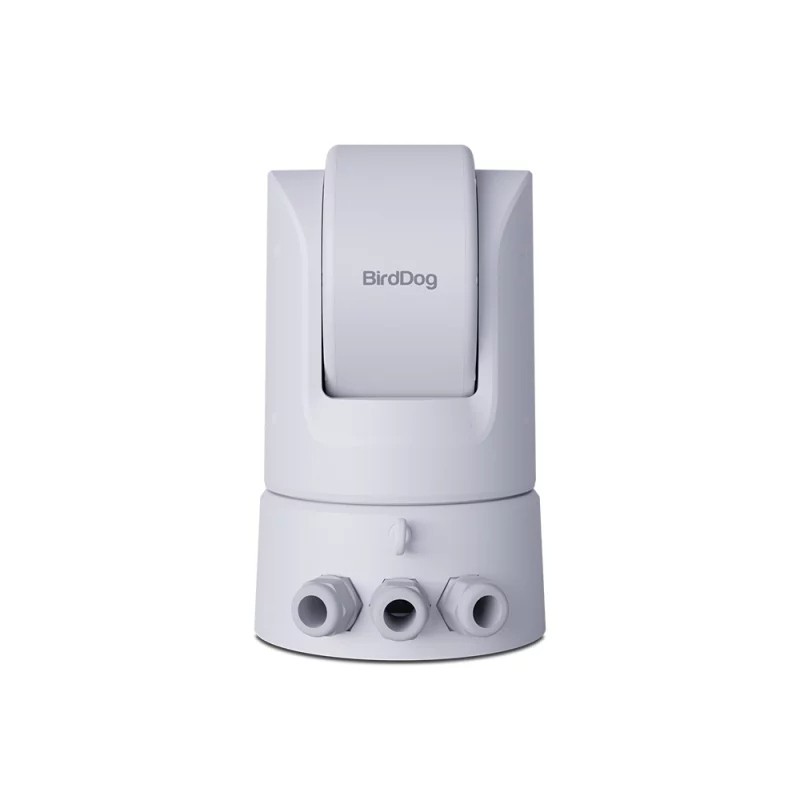

  • Sealed chassis cable connection with three weather-resistant flanges and strain relief; PoE++ or DC power supply.
  • Adjustable AI auto-tracking (fast for sports, smooth for events) via BirdUI.

SPECIFICATIONS

DISPLAY

  • Image sensor: Sony 1/1.8" CMOS – ULTRA HD
  • Lens: f=6.9 mm~215 mm
  • Optical zoom: 30x (4k) – 60x (HD) optical, 8x digital
  • Video format:
  • 2160p @ 60/59.94/50/30/29.97/25 fps
  • 1080p @ 60/59.94/50/30/29.97/25 fps
  • 1080i @ 60, 59.94, 50 fps
  • 720p @ 30/29.97/25 fps
  • Horizontal angle of view: 60°~2°
  • Vertical viewing angle: 34°~1.1°
  • Diagonal angle of view: 67°~2.3°
  • Aperture: f1.35~f4.6
  • Focus: automatic (global/center/top/bottom/left/right), manual
  • Exposure: automatic, manual Shutter priority, aperture priority, brightness priority
  • Exposure metering: average, center, top, bottom, left, right
  • Backlight compensation: Yes
  • Exposure compensation: Yes
  • Flicker reduction: Outdoor / 50 Hz / 60 Hz
  • White balance: Auto / One-touch / Indoor / Outdoor / Manual / Color temperature
  • Digital noise reduction: 2D/3D noise reduction
  • SNR: >50 dB
  • Effective pixels: 8.4 MP
  • HDR: Supported, REC.2020 color space

MECHANICAL

  • Rotation/tilt: ±170°, -30° ~ +90
  • Rotation speed: 0.05–90°/s
  • Tilt control speed: 0.05–90°/s
  • Number of presets: 255 presets
  • IR laser: included, illumination range 500 m
  • FreeD support: Included, UDP and integrated in NDI Stream
  • Integrated heater: Included
  • Glass coating: Highly durable hydrophobic, anti-fungal, and anti-contamination coating for the aviation and marine industries.

AI FUNCTIONS

  • AI automatic tracking: area management, framing settings, sensitivity settings, automatic framing, scene tracking, zone tracking
  • AI gesture control: Supported

I/O INTERFACE

  • Video output interface: 12G-SDI, RJ-45
  • Video compression formats: h.264, h.265, high bandwidth NDI
  • Audio I/O: Stereo unbalanced 1/4" TRS input/output
  • Network interface: SFP+ fiber optic, RJ45 1GbBaseT adaptive Ethernet port; PoE
  • Encoder network protocols: NDI®|HX2, NDI®|HX3, high-bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked with Dante Activator)
  • Control interface: Ethernet, serial
  • Control protocol: NDI, VISCA-IP
  • Control API: BirdDog RESTful API 2.0

GENERAL

  • Input voltage: DC 24 V, PoE++
  • Input current: 1.2 A
  • Power consumption: max. 40 W
  • Operating temperature: -40 °C ~ +60 °C
  • IP rating: IP66
  • Dimensions (W*H*D): 200 x 330 x 226 mm
  • Weight: 7.6 kg
Parameters

Parameters

Manufacturer: BirdDog
Category: PTZ

Main parameters

Camera Sensor size1/1,8"
Resolution4K
Zoom30x

Other parameters

VersionPTZ
