BirdDog 3x BDX1UB + 1x BDKBD Bundle (Ships in ruggedised foam box)

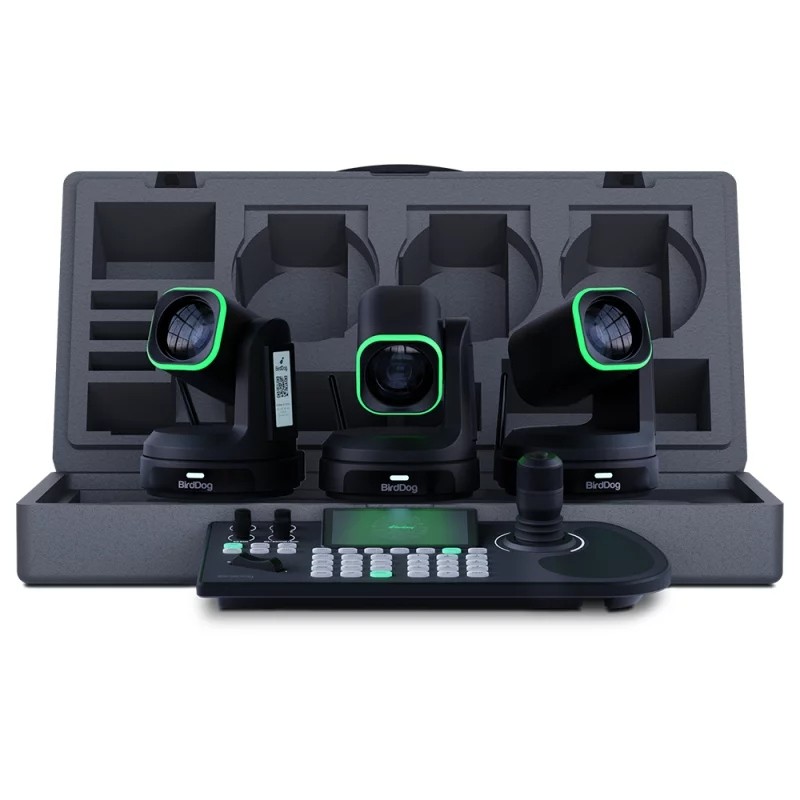

The BirdDog X1 Ultra Bundle Blackincludes three X1 Ultra 4K PTZ cameras and a KBD controller in a foam case. This bundle brings professional image quality and unified control to streaming studios, corporate AV spaces, and church halls.

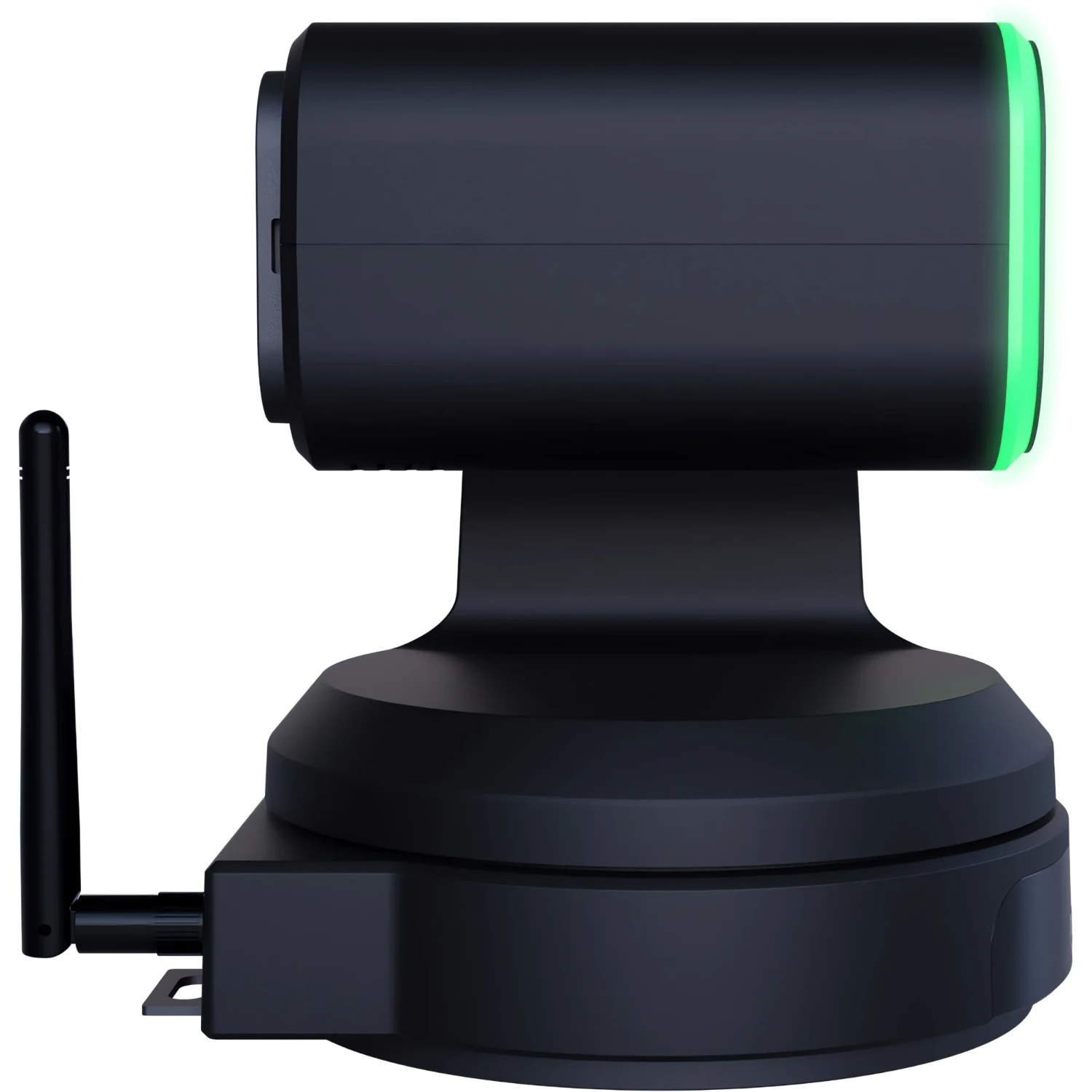

X1 Ultra

The X1 Ultra uses a Sony 1/2.8" CMOS sensor with 8.29 MP and 12× zoom (4.1–49.2 mm) to record UHD 4K at 30 fps, Full HD, and 720p. A wide 70.28° field of view, 64-point color matrix, 2D/3D noise reduction, and SNR > 50 dB ensure clear images, while 0.1–80°/s pan, 0.1–60°/s tilt, and 255 presets add cinematic movement to your shots.

Connectivity: NDI®|HX3, SRT, RTMP, and VISCA-IP via PoE or Wi-Fi 5, plus HDMI and USB-UVC. The integrated NDI|HX decoder allows a single camera to function as a return monitor or teleprompter, reducing cable clutter and latency.

Smart features: AI Auto-Tracking, Halo Tally, and a 2.93" always-on E-Ink label for instant display of IP address or camera ID. Control via BirdUI, iOS app, Q-SYS, Crestron, or Companion.

The KBD controller allows you to preview four NDI streams, offers a Super-Fine joystick for fine control, and copy settings between cameras. Made from ocean-bound plastic and aluminum, it is durable and environmentally friendly. Designed for low-latency IP production, the X1 Ultra package combines 4K optics and eco-friendly design for future PTZ upgrades.

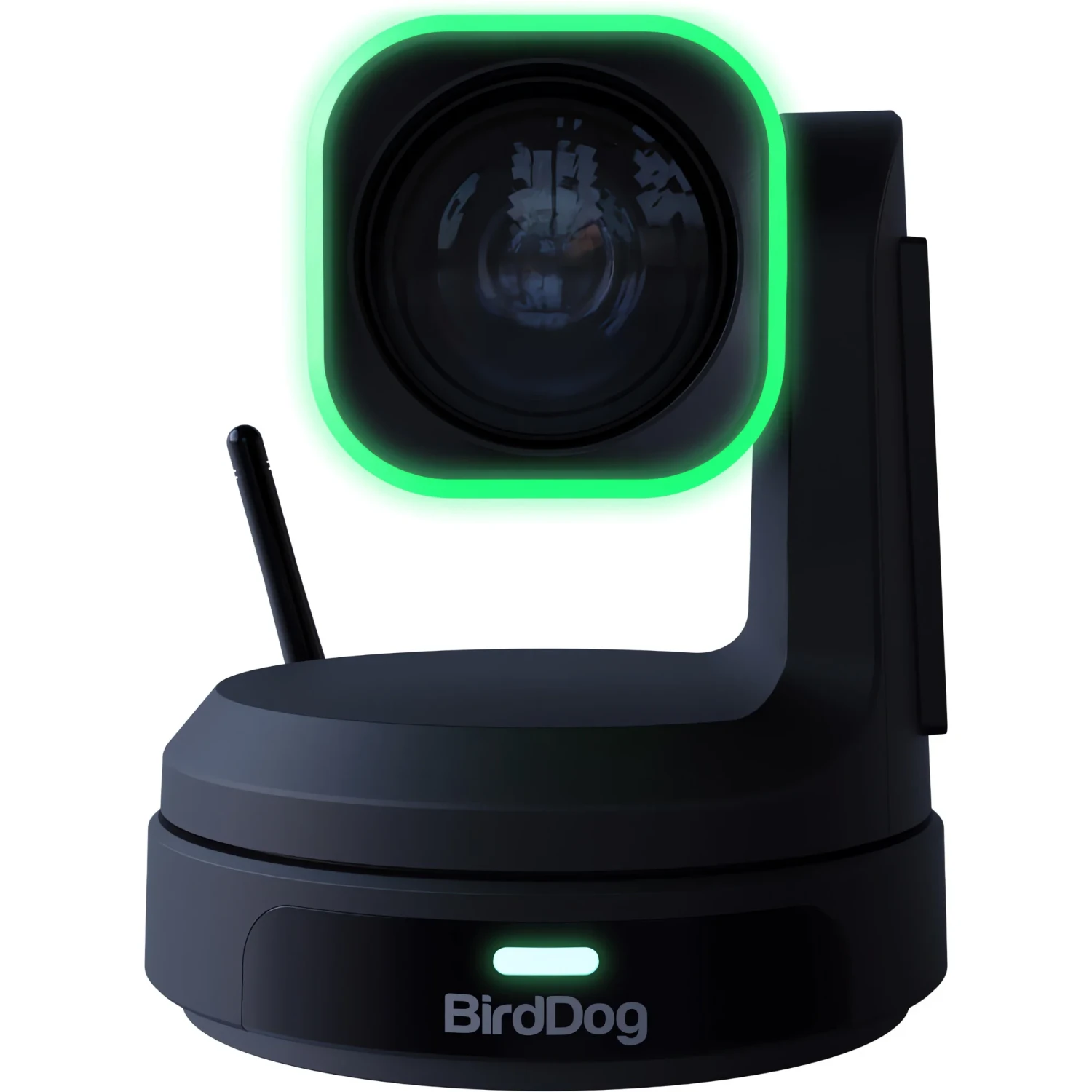

Tally light. Halo effect.

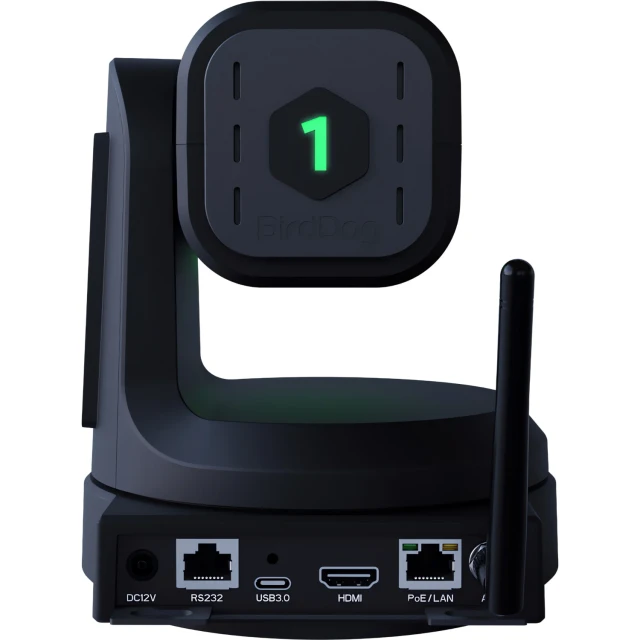

The X1 and X1 Ultra cameras feature the most visible and effective tally system on the market. There is a large frame on the front that is clearly visible even in daylight and a replaceable illuminated number system on the back. Your crew and performers always know exactly where to look to keep the audience engaged and the broadcast looking professional.

AI tracking

The X1 and X1 Ultra cameras keep the subject in focus thanks to AI tracking technology, which intelligently tracks the subject's movement in real time. Whether you're directing a live event, capturing spontaneous moments in a hybrid environment, or tracking a sporting event, AI tracking ensures a well-composed shot—without the need for an eight-armed controller.

NDI® | HX3 – Greater reliability across different networks

The X1 and X1 Ultra cameras deliver superior network performance thanks to the integration of NDI® | HX3. The result is significantly lower network load while maintaining excellent image quality, enabling wider use in various network environments. BirdDog's implementation of NDI® | HX3 provides quality and performance you can rely on.

Integrated NDI® | HX decoder

The X1 and X1 Ultra are the world's first PTZ cameras with an NDI® | HX decoder designed specifically for control preview, return signals, or teleprompter. We've reduced all connectivity to a single cable, radically simplifying equipment handling. Whether you're broadcasting live or preparing a CEO's speech, the integrated NDI HX decoder allows for more options with minimal setup.

Wi-Fi – wireless connectivity

No need to run a cable to every shot. In addition to classic Ethernet with PoE, the X1 and X1 Ultra have built-in Wi-Fi. This makes it easy to capture shots from locations where it is difficult to run a cable and seamlessly integrate them into any environment. Your production is now much more flexible.

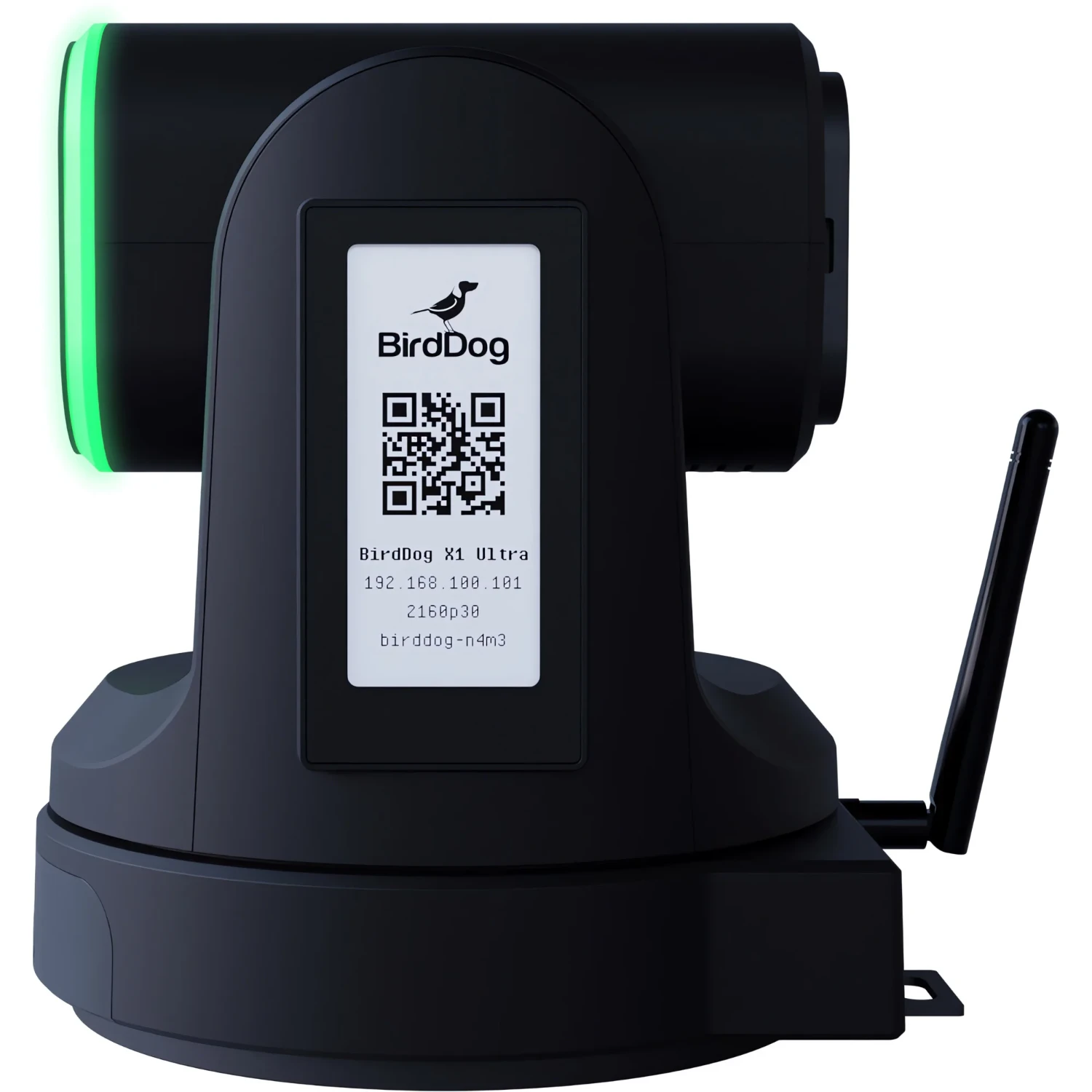

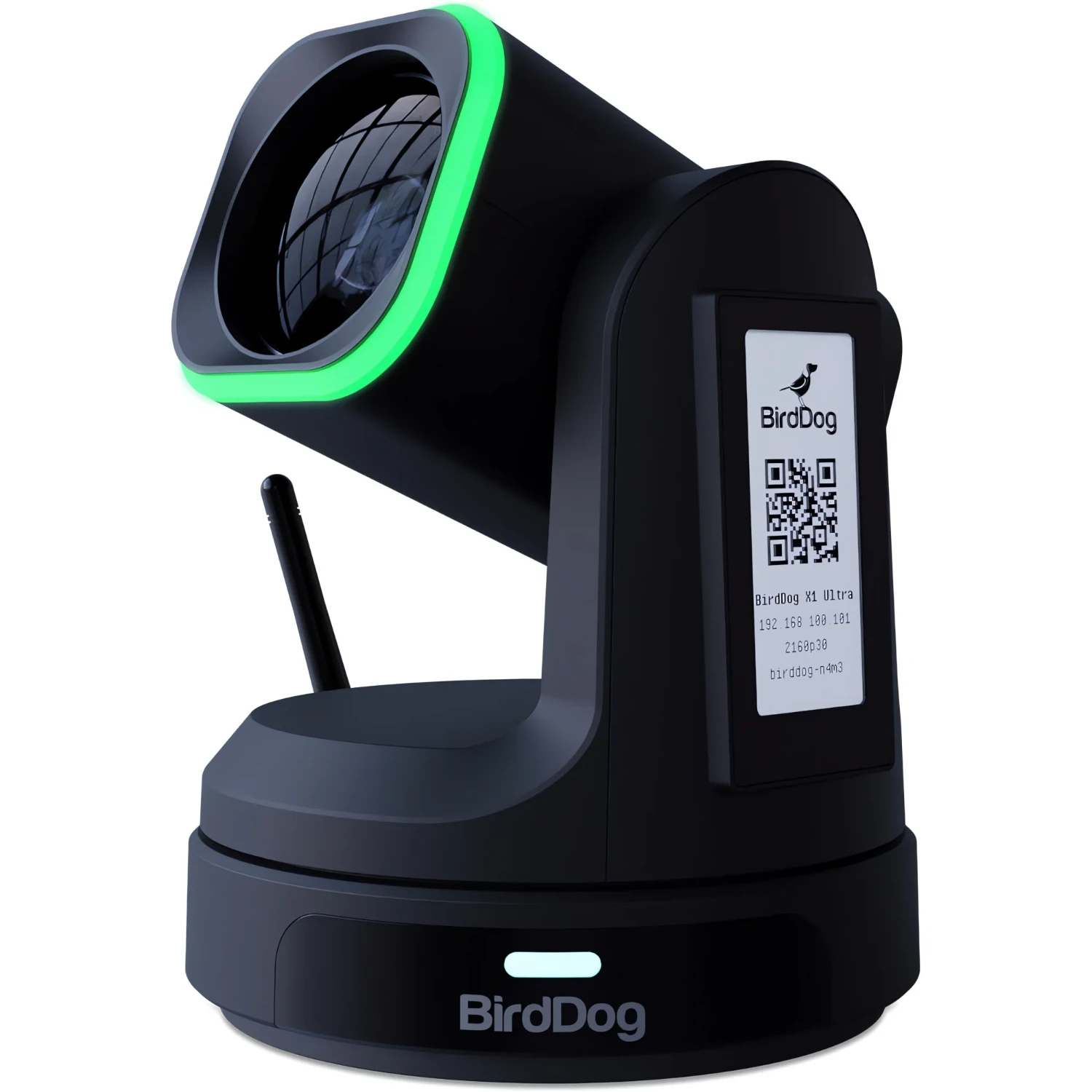

E-Ink label – be seen

The always-on E-Ink label on the X1 and X1 Ultra is a real innovation. From displaying network addresses for easy access to controls to instant camera identification, this feature ensures that your settings are clear and each camera is clearly identifiable even when the power is off.

Color matrix

Camera color settings are now at a higher level. The X1 and X1 Ultra feature a full color matrix with individual saturation settings for red, green, blue, cyan, yellow, and magenta – all with 64 levels of adjustment.

NDI® PTZ control for iPad and iPhone

Take full control of your BirdDog camera with an easy-to-use iPad/iPhone app. Pan, tilt, zoom, save and recall presets, view full-screen camera previews, and access all BirdDog camera color matrix tools and settings.

Advanced features in BirdUI

BirdUI provides complete access to all X1 and X1 Ultra features in a clear and intuitive interface. As a browser-based application, it is accessible from anywhere within the same network as the X1/X1 Ultra cameras. BirdUI adds, for example, a dashboard for monitoring cameras and a light/dark mode that adapts to your production environment.

Technical specifications:


Image sensor: Sony 1/2.8″ CMOS • ULTRA HD
Lens: f = 4.1 mm – 49.2 mm
Optical zoom: 12×
Video formats: 2160p at 30/29.97/25 fps; 1080p at 30/29.97/25 fps; 720p at 30/29.97/25 fps

Horizontal viewing angle: 70.28° (wide) – 6.57° (tele)
Vertical angle of view: 42.06° (wide) – 3.76° (tele)
Diagonal angle of view: 78.36° (wide) – 7.5° (telephoto)

Aperture: F1.8 – 2.68
Focus: Auto, manual
Exposure: Auto, shutter priority, aperture priority, manual
Backlight compensation (BLC): Yes
Digital noise reduction: 2D and 3D
Signal-to-noise ratio (SNR): > 50 dB
Effective number of pixels: 8.29 MP

MECHANICS

Pan/Tilt rotation range: ±175°, −90° to +90°
Pan rotation speed: 0.1 – 80°/s
Tilt speed: 0.1 – 60°/s
Number of presets: 255

INPUTS / OUTPUTS (I/O INTERFACE)

Video outputs: HDMI, USB-C UVC 1.1, network
Video compression formats: H.264, H.265
Network interfaces: 100M adaptive Ethernet; PoE IEEE 802.3af, Wi-Fi IEEE 802.11ac

Encoder network protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
HDMI decoder network protocols: NDI|HX2, NDI|HX3

Control interface: 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS-232 (input and output), RS-485, USB-C (UVC1.1)
Control protocols: VISCA (transmission speed: 38,400 / 9,600 / 4,800 / 2,400), VISCA-IP, NDI
Third-party protocol support: Q-SYS, Crestron, and BitFocus Companion (planned for August 2024)

GENERAL PARAMETERS

Input voltage: DC 12V, PoE IEEE 802.3af
Input current: 2.0 A (max.)
Power consumption: 13 W (max.)
Operating temperature: −10 °C to +40 °C
Operating humidity: 20% to 80%

Dimensions (W × H × D): 171.6 × 192.6 × 171.6 mm / 260 × 217 × 197 mm (before/after packaging)
Net/gross weight: 1.43 kg / 2.096 kg

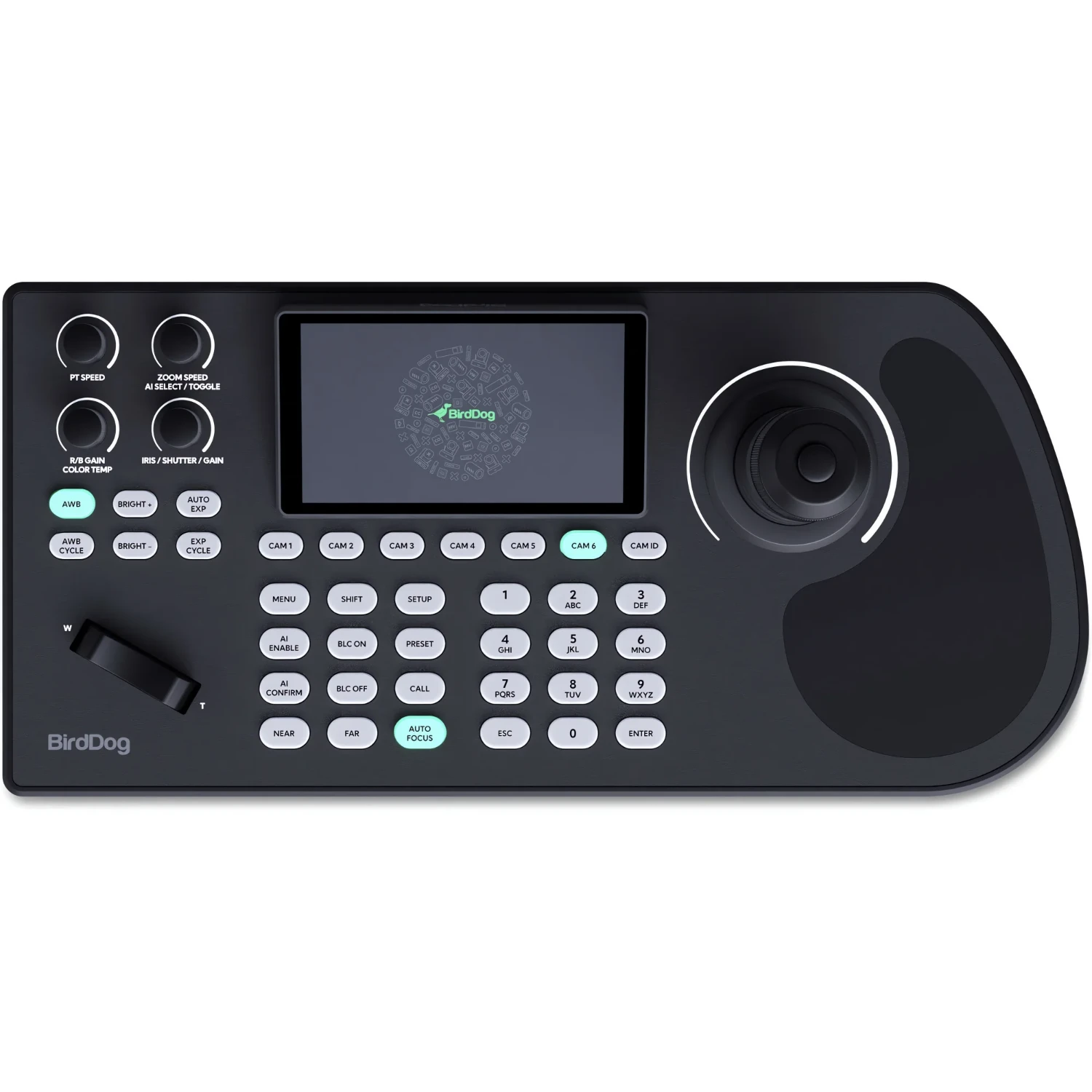

BirdDog KBD Controller

The BirdDog KBD controller offers PTZ camera operators a durable and ergonomic design, a large display for working with multiple cameras, and direct access to key functions. Witha built-in tally displayandphysical tactile feedbackwhenswitching cameras, its operation is intuitive and environmentally friendly—it is made from Ocean-Bound Plastics and recyclable aircraft-grade aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensures maximum versatility regardless of the protocol used.

Designed for smooth control and comfort

The KBD is designed for professionals who require precision and simplicity in their work. The robust, ergonomic design is built for long-term use and offers a hand rest and tactile control buttons for all-day comfort.

Ultra-fine control mode

When you need to fine-tune the details, the camera joystick can be easily switched to "fine-tune" mode, which increases its sensitivity 10×. Recomposing shots during a live broadcast becomes an artistic expression rather than a stressful task.

Expanded display. Instant camera control

The large display allows you to monitor up to four cameras simultaneously or focus on one in full-screen mode. Pairing and switching cameras is a matter of a single button press with clear tactile feedback, ensuring smooth and intuitive transitions.

The KBD display provides live previews for NDI-HX2/HX3 cameras and displays key text information for other models, ensuring seamless compatibility and clarity throughout the workflow.

Built-in tally frames

Pairing and switching cameras is a matter of a single press thanks to tactile buttons with instant response. When integrated with mixing consoles such as TriCaster or vMix, the KBD's built-in tally frame displays the live camera directly on the controller, so you can focus fully on your work without having to watch additional screens.

Camera settings synchronization

A groundbreaking feature in the industry allows you to set up one camera exactly the way you want it and then simply copy those settings to another camera of the same model (BirdDog X series feature). This makes it easy to unify the look of all your cameras and take your production quality to the next level.

Direct access to key functions

With a clear layout, operators can access camera pairing, switching, and configuration in seconds. Everything is clear, understandable, and designed based on user feedback.

Maximum connectivity in an eco-friendly design

BirdDog KBD connects seamlessly via NDI, VISCA, ONVIF, RS-232, and RS-422, making it a versatile solution for any setup. It also emphasizes sustainability—plastics from ocean waste are used in its manufacture, reducing its environmental impact.

Affordable innovation

With expanded features and a lower price point than the previous generation, the KBD is the result of careful tuning to user needs. It offers exceptional comfort, precise control, and eco-friendly design for the modern PTZ camera operator.

Technical specifications:

Camera control

PTZ control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ control: VISCA-IP, NDI

Focus control: Auto and manual focus buttons
Auto exposure: Direct button
Manual exposure: Rotary switch – brightness/shutter/gain/aperture settings

Auto white balance: Direct button
Manual white balance: Switchable rotary control – R-Gain, B-Gain, color temperature settings

Auto focus: Direct button
Manual focus: Direct button (Near/Far)
BLC (backlight compensation): Direct button

Zoom ring on joystick: Yes (on/off)

Programmable trigger on joystick: Adjustable – One-Push Focus, AI Tracking, One-Push AWB
Camera AI mode control: Camera dependent, supported

Copy/paste camera settings: Supported on select BirdDog cameras (VISCA-IP, NDI)

Camera access

Maximum number of supported cameras: 255
Direct camera access buttons: 6
Direct preset access buttons: 10
Max. number of presets: 255 per camera
Camera OSD menu: Menu button / joystick control

Display

Display diagonal: 5″
Display resolution: 1280 × 720

Multiview IP video: Supported, NDI HX (proxy), RTSP (max. 30 fps)
Full-screen IP video: Supported, NDI HX (proxy), RTSP (max. 30 fps)
Supported IP video codecs: H.264, H.265

Tally frames: Optional, multiview and full screen modes
On-screen menu: Fully configurable
Light/dark mode: Yes

NDI support

NDI control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI multiview: NDI HX2, NDI HX3
NDI router: Yes, tracks currently active camera
NDI discovery: Supported
NDI Access Manager: Supported
NDI PTZ sensitivity: Standard (NDI); ultra-fine (BirdDog specific)

Settings/configuration

Web interface: BirdUI for settings and firmware updates
Light/dark mode: Yes
Camera selection via API: Yes

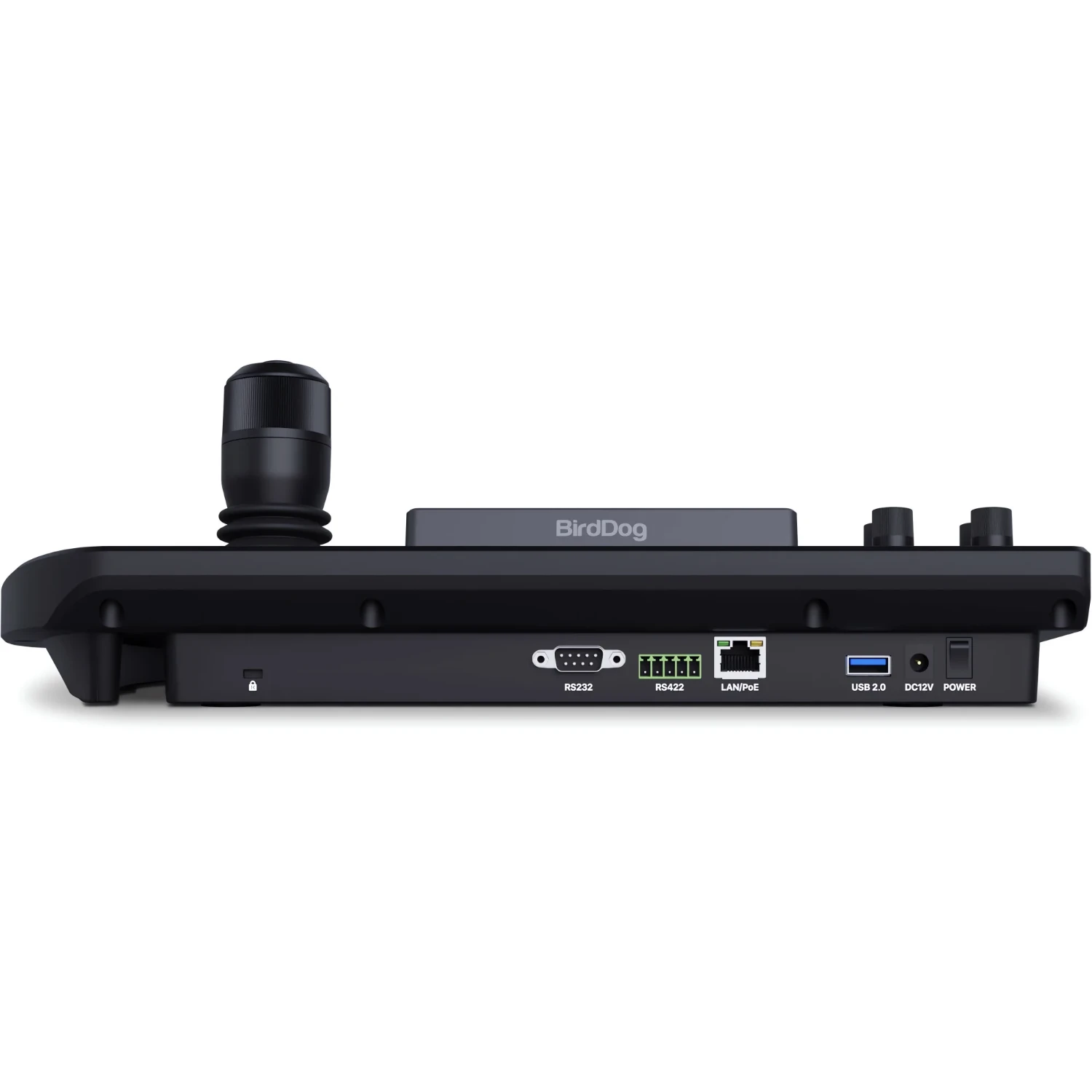

Serial connections

RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector

Mechanical design

Joystick type: 4D (integrated trigger button)

Buttons: 37 buttons; backlit, with individual contact, silicone pad
Rotary controls: 4 knobs; push button, stepped, 360° range

Zoom lever: Spring-loaded, adjustable

Dimensions
377 × 177 × 118 mm; 14.84 × 6.96 × 4.64 in (L × W × H including joystick)

Construction material: Aluminum; OBP plastics from ocean waste
Integrated carrying handle: Yes

Operating temperature: −10 °C to +55 °C; 14 °F to 130 °F
Storage temperature: −10 °C to +55 °C; 14 °F to 130 °F

Operating humidity: 20%–80% (non-condensing)
Storage humidity: 0% to 90% (non-condensing)

Power supply: PoE (802.3af), DC 12 V
Power consumption: ≤ 5 W

Package dimensions:
390 × 215 × 165 mm; 15.35 × 8.46 × 6.49 in
