Atomos Ninja V Pro Kit

This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Eliminate your camera's internal compression and time limits - you can record high-definition HD video up to 4kp60 directly from your camera via HDMI 2.0. Together with the 1TB AtomX SSDmini, you can achieve up to 150 minutes of 4K recording on a single drive! And when you're done, your ProRes and DNxHR recordings ready for editing are stored on the available SSD drives

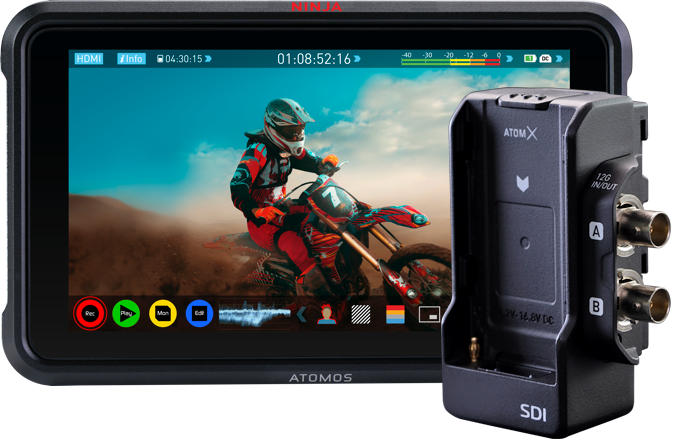

THEKIT ALSO INCLUDES AN ATOMOS ATOMX SDI MODULE.

Ninja V + ProRes RAW
Photographers have long known about the benefits of RAW for stills, now Nikon Z series users will be able to get the same power of RAW in video. Capturing Apple ProRes RAW video with the Ninja V unlocks complete control of the video image at the highest quality possible. The maximum dynamic range, color accuracy and detail is preserved, while at the same time every aspect of the video image can be controlled with precision for maximum creativity. Colors can be easily matched and the extra information means footage can be easily be manipulated in post-production, which is especially useful for grading and VFX shots. - read more about ProRes RAW

HDR/SDR perfection
The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect color accuracy every time, and also enables playout to HDR or SDR TV

Compact Monitor Recorder made perfect
The new Ninja V features a stunningly bright 5.2" 10-bit HDR monitor with an astounding 1000 nits of output. The sleek aluminium body is crafted for maximum durability, weighing in at just 360g and measuring only 25mm thick - easily attaching to any camera rig

Record 4K HDR Gaming
Ninja V is a stand-alone system for 4k UHD, HDR and high frame rate capture that eliminates expensive, complicated and unreliable PC setups. Ninja V enables simple recording, monitoring and instant review. Capture every detail in HDR and automatically include all the correct HDR flags ready for upload to YouTube. Ideal for games development testing, pre-release capture sessions or just to show off your skills!

PACKAGE CONTENT

  • Ninja V unit
  • AtomX SDI
  • Master Caddy II x 1,
  • 12V-3A AC power supply
  • Battery Eliminator
  • Quick Start guide

SPECIFICATIONS

Weight
Without batteries & media 360g / 12.7oz
With batteries & media -
Dimensions (W x H x D mm) 151 x 91.5 x 31mm
Construction Aluminium alloy chassis with ABS polycarbonate back plate
Mounting points 1/4-20 UNCscrew mount; 1x top, 1x bottom
Power
Operating power 10 - 19W
Compatible batteries NP-F series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 2 x 7.4V) 5200mAh - up to 2hrs (monitor & record 4K +60p)
7800mAh - up to 3hrs (monitor & record 4K 60p)
DC In
Continuous power
* Patent pending
Continuous power with external adaptor*
Touchscreen
Size 5”
Resolution 1920 x 1080
PPI 427
Aspect ratio 16:9 native
Color Gamut REC709 HDTV
Look up table (LUT) support 3D LUT (.cube format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Technology SuperAtom IPS panel (capacitive touch),
calibration to Rec.709 with optional calibration unit
HDR
AtomHDR Yes
Supported Log formats Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,
Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog,
Nikon N-Log
HDR Recording (Gamut) Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
Flog, PQ10k, HLG, Nikon N-Log
HDR Monitoring (Gamma) Sony SGamut / SGamut3 / SGamut3.cine / BT2020
Canon Cinema / DCI P3 / DCI P3+ / BT2020
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709
JVC LS300
Red DragonColor / DragonColor2 / RedColor2 /
RedColor3 / RedColor4 / RedWideGamut
HDR Monitoring (Gamut) Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out
Bit depth 10-bit (8+2 FRC)
Brightness 1000nit (+/- 10% @ center)
HDR input (PQ/HLG)
HDR output (PQ/HLG)
Yes / Yes
Yes / Yes
Video Input/Loop Out
HDMI 1 x HDMI (2.0)
SDI -
Signal Uncompressed true 10-bit or 8-bit 422
(camera dependent)
Video Output (Play Out)
HDMI 1 x HDMI (2.0)
SDI -
Signal Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
Supported Loop Out Formats
HDMI to HDMI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120
2160p 24/25/30/50/60
SDI to SDI -
Video Signal Conversion
HDMI to SDI -
SDI to HDMI -
AtomX Expansion Port - Video, Audio & Power In/Out
Video Up to 4Kp60
Audio 12 channels digital 24-bit 96KHz
Power 5V-16.6V
Supported Codecs & Frame Rates (Record & Playback)
Video to
ProRes / DNxHR

(DNx utilizes a .MOV wrapper)
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
2K
1080p; 24/25/30/50/60/100^/120^
1080i; 50/60i, 720p; 50/60p
Onboard Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD monitoring Yes - Loop-out and playback
Audio In/Out (48kHz PCM Audio)
HDMI 2 or 8ch 24-bit, camera dependent
SDI -
Audio Line in / Mic in / Headphone out 2ch 48kHz 24-bit
Headphone out 3.5mm
Remote Start/Stop
HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI -
Other LANC control - Slave
Playback
Playlist / Genlock / LTC Yes / - / -
CDNG (Recorded content) N/A
ProRes (Recorded content) All recorded files can playback. Playback in slow motion.
DNxHR / DNxHD (recorded content) All recorded files can playback. Playback in slow motion.
for list of tested and approved drives
Recording
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes*
Meta data tagging Yes (10 tags available)
Supported media 2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate. Visitatomos.com/drives
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock 2.5" SATA to USB 2.0/3.0
Supported applications Supported Applications FCPX/FCP7+ / Media Composer
5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
Autodesk Smoke 2015
XML support FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
* Timelapse feature will be added to next firmware upgrade
What's In The Box
Accessories included Ninja V unit, Master Caddy II x 1,
12V-3A AC power supply, Battery Eliminator
Quick Start guide
Accessories
Optional extras Power Kit: 2 x battery,
1 x charger, 1 x power supply
Other: Atomos HDMI cable,
X-Rite i1DisplayPro calibration,
Ninja V Sunhood
Supported Media
Please refer to:www.atomos.com/drives

All specifications correct when published, subject to E&OE.

24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution

*Available in future firmware updates
*** No HDMI spec for 2K DCI
^

From supported HDMI sources such as gaming consoles and graphics cards.

Parameters

Parameters

Manufacturer: Atomos
Category: Field recorders / Monitors

Main parameters

Diameter5"
Format/CodeDNxHR
Format/CodeProRes
Format/CodeMOV
Supported resolution4K DCI/50p, 60p
Supported resolution4K DCI/24p, 25p, 30p
Supported resolutionUHD/50p, 60p
Supported resolutionUHD/24p, 25p, 30p
Supported resolution1080/100p, 120p
Supported resolution1080/50p, 60p
Supported resolution1080/24p, 25p, 30p
Supported resolution1080/50i, 60i
Supported resolution720/50p, 60p
InputHDMI
Input12G SDI
Input6G SDI
Input3G SDI
InputSDI
Recording mediumSSD

Other parameters

Other featuresRemote
Other featuresHDMI Loop
Other featuresSignal Conversion (SDI/HDMI)
Display resolution1920x1080px
Touchscreen displayYes
Display typeLCD
SDR/HDRHDR
Power supply typebatteries
Power supply typesource
Battery typeSony NP-F
Supported LOGNikon N-Log
Supported LOGFujiFilm Flog
Supported LOGRed LogFilm
Supported LOGJVC JLog
Supported LOGPanasonic Vlog
Supported LOGArri Log C
Supported LOGCanon CLog2
Supported LOGCanon CLog
Supported LOGSony SLog3
Supported LOGSony SLog2
