Aputure Sidus Four

The Aputure Sidus Four is a four-universe CRMX/DMX transmitter with a built-in wireless router and Ethernet node that supports up to four additional wired DMX universes. The Sidus Four can transmit up to 8 DMX universes simultaneously.

Transfer any protocol
In conjunction with its powerful dual-band antennas, Sidus Four is a powerful transmitter for the most widely used lighting protocols. It can function as a CRMX/DMX transmitter and Wi-Fi or Ethernet node with sACN/Art-Net protocols.

Fast network diagnostics
With an extremely intuitive user interface, the Sidus Four screen clearly displays important network status information, allowing users to quickly diagnose network status without having to scroll through menus.

Minimal frequency interference
With frequencies for CRMX and Wi-Fi at 2.4GHz and 5.8GHz, Sidus Four minimizes the risk of network interference due to overlapping operating frequencies, significantly increasing network reliability.

Broad wired connectivity options
Sidus Four features two bidirectional Ethernet RJ45 ports with 100 Mbps bandwidths and four bidirectional DMX512 XLR ports.

Robust power options and reliability
With a built-in V-mount battery holder and an internal backup battery with 80 minutes of battery life, Sidus Four users have a wide range of power options for their equipment.

Reliable weatherproofing
Designed for professional filmmakers and lighting professionals only, the Sidus Four is built with a durable IP65-rated construction, meaning it can be used in any filmmaking environment.

Features:

• Quad-universal CRMX transmitter with built-in wireless router and Ethernet node supporting up to four additional wired DMX universes
• Built-in Ethernet switch allows for network expansion
• Four bidirectional DMX512 ports
• Compatible with CRMX, DMX512, Art-Net and sACN via Ethernet or Wi-Fi
• Use four built-in CRMX transmitters separately with inputs for four DMX512 ports to transmit four separate wireless universes
• Intuitive user interface and instant network status display for quick diagnostics
• CRMX Linking Key support for ultra-fast device pairing
• Ultra-long wireless range: CRMX: 800 m, Sidus BT: 300 m, Wi-Fi: 800 m
• High-frequency Wi-Fi: by using 5.8 GHz Wi-Fi, Sidus Four communicates faster and more stably by avoiding interference from crowded 2.4 GHz networks
• CRMX 2.4 GHz frequency range ensures no frequency overlap with Wi-Fi functions
• 80-minute battery backup
• Built-in V-Mount battery holder
• IP65 rated (dustproof and waterproof)

Technical Specifications:

• Connectivity: CRMX, DMX512, Art-Net & sACN via Ethernet and Wi-Fi
• Universe support: 4 wireless universes & 4 wired universes
• Ethernet connectivity: 2x RJ45 ports at 100 Mbps (each)
• DMX connectivity: 4x XLR 5-pin DMX bidirectional female ports
• Operating Frequencies: Wi-Fi: 5.8 GHz at 150 Mbps; CRMX/Sidus BT: 2.4 GHz
• Wireless range: Bluetooth: ≤300 m; Wi-Fi: ≤800 m; CRMX: ≤800 m
• Wi-Fi modes: AP mode / STA mode
• CRMX mode: TX mode
• AC adapter operating voltage: AC In: 100-240V; DC Out: 9V / 18W
• DC Power Options: DC Jack: 5.5/2.5mm DC Barrel Jack (9-24V) (3m)
• V-Mount: V-Mount Battery Mount (12-16.8V)
• Lithium Polymer Battery: 3.7 V 1500 mAH
• Battery backup: 80 min
• Power consumption: 17 W max, 6 W normal (without charging, Type-C output)
• Charging time: 30 min
• IP protection: IP65
• Operating temperature: -20°C to 55°C
• Firmware update option: Sidus BT, USB-C, Sidus Link Pro Wifi
• Cooling: Passive cooling
• Dimensions (without antenna): 18.7 x 18.6 x 6.9 cm
• Weight: 1.4 kg

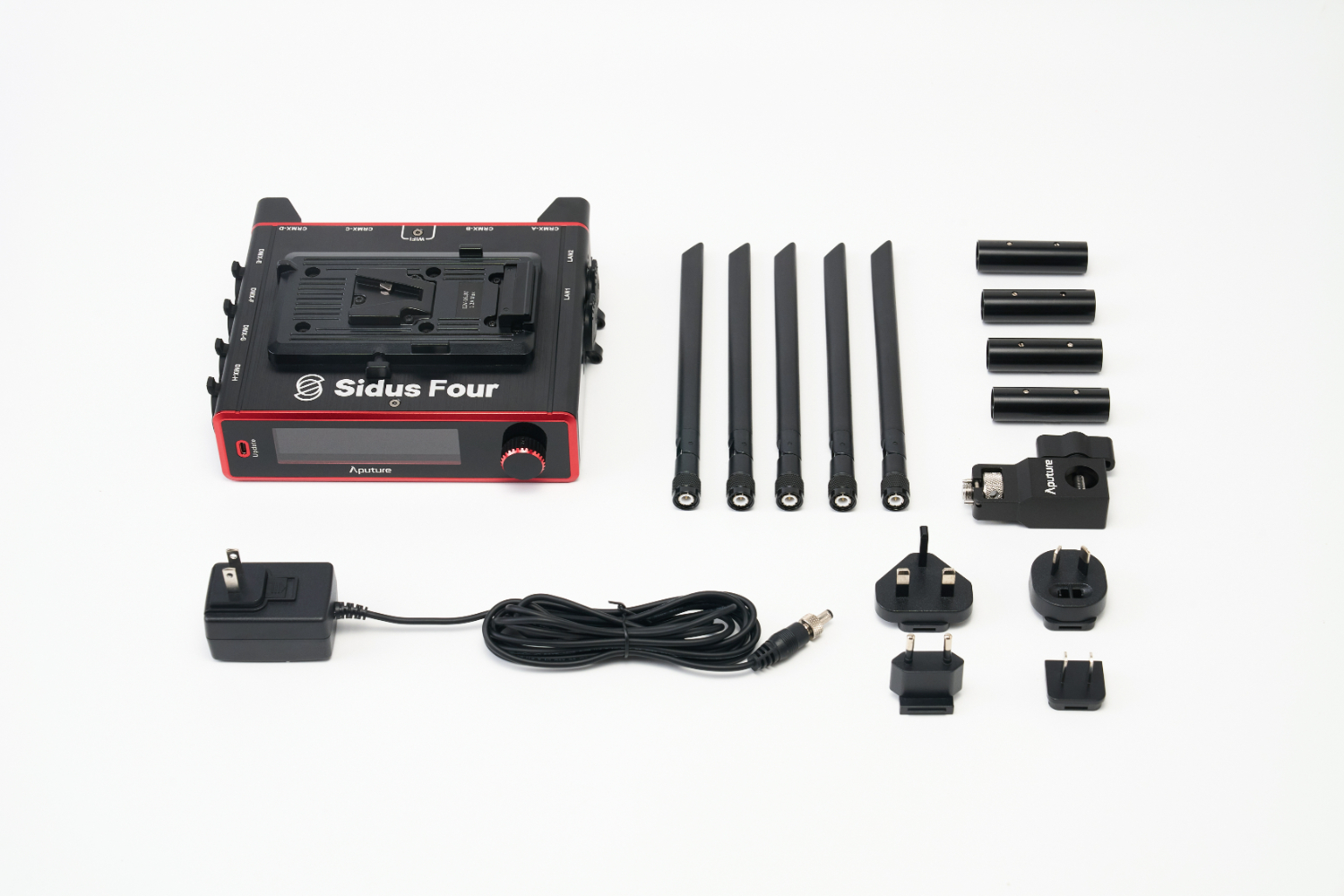

What's included:

• 1x Sidus Four
• 5x Dual-band antenna
• 1x 3/8'' to Baby Pin Receiver Adapter
• 1x Sidus Four 18 W (9 V) Power Adapter
• 1x US plug
• 1x CN plug
• 1x AU plug
• 1x EU plug
• 1x UK plug
• 4x XLR 5-pin male to XLR 5-pin male adapter
• 1x Hard carrying case
