Lilliput PVM210 - 21.5" Professional Video Monitor

The Lilliput PVM210 is a sturdy 21.5″ Full HD monitor with 1,000 cd/m² brightness and 101% Rec.709 color space. It serves as an assistant or confidence monitor at live events, conferences and public viewing, or as a preview display in an editing suite. It accepts HDMI 1.4b, VGA and AV and displays a 4K HDMI feed on its native 1080p panel. HDR (HLG, ST2084)…

More information

549 € with VAT 453.72 € without VAT
-+
Availability
14-30 days
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput PVM210 is a sturdy 21.5″ Full HD monitor with 1,000 cd/m² brightness and 101% Rec.709 color space. It serves as an assistant or confidence monitor at live events, conferences and public viewing, or as a preview display in an editing suite. It accepts HDMI 1.4b, VGA and AV and displays a 4K HDMI feed on its native 1080p panel. HDR (HLG, ST2084) is supported.

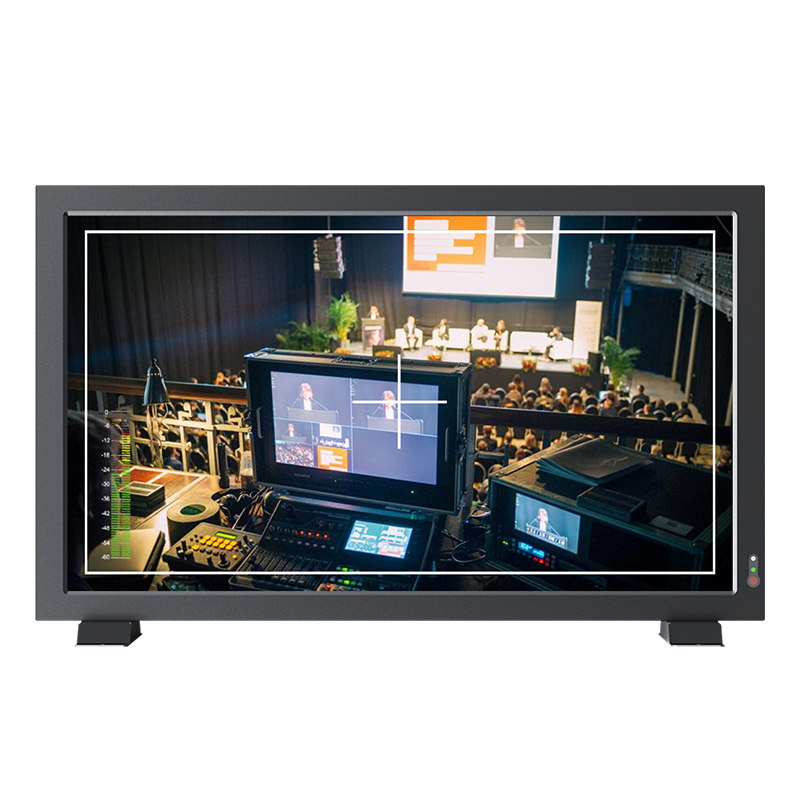

A bright 21.5" monitor for live events and editing

A Full HD panel with 1,000 cd/m² and HDMI, VGA and AV inputs – readable even in brightly lit spaces.

Lilliput PVM210
21.5" Full HD1,000 cd/m²101% Rec.709HDMI + VGA + AVHDR

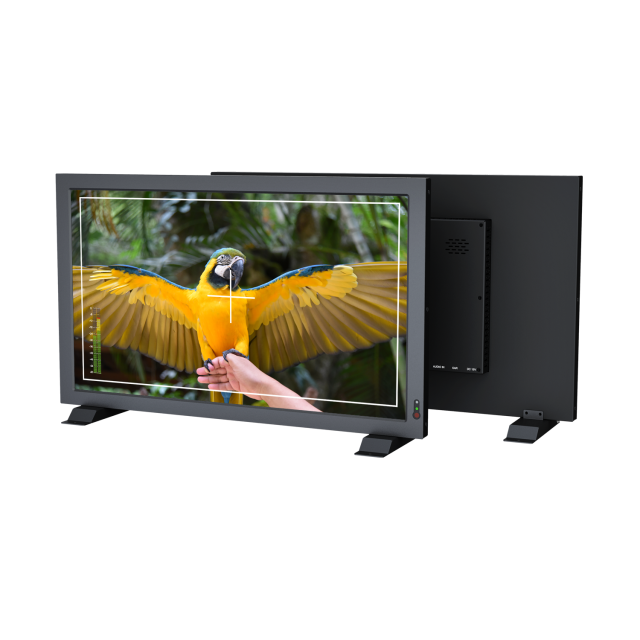

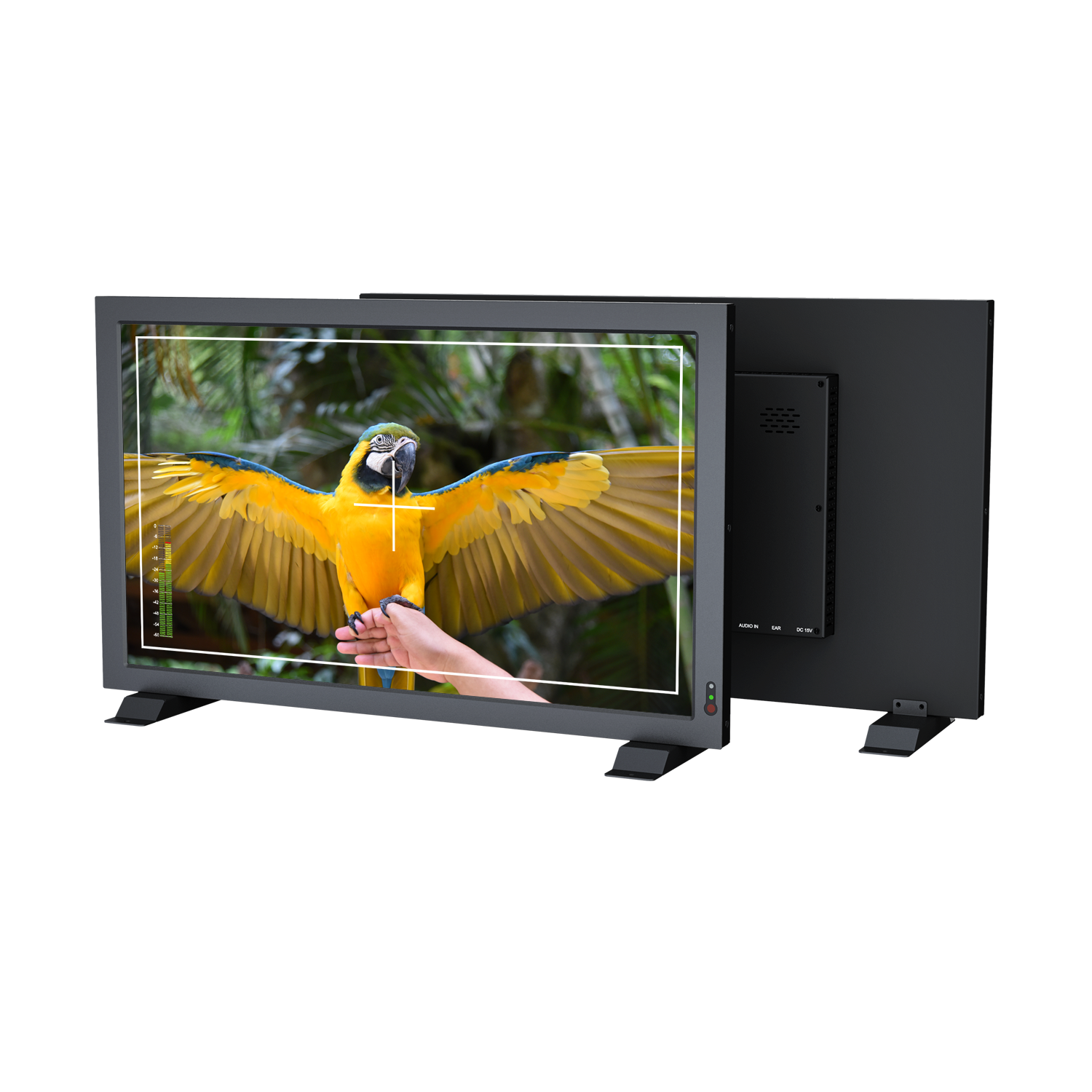

Composition under control

The camera image sent to live TV is often cropped. Center and safety markers help you set up cameras in real time so the most important shots stay in the center of the frame.

1,000 cd/m²

High brightness for conferences, live events and public spaces.

HDR

HLG and ST2084 300/1000/10000 supported.

Audio level meter

Monitors the current audio output and keeps it within a sensible dB range.

4K on HDMI input

Accepts 2160p 24/25/30 Hz and shows it on the 1080p panel.

More information

About the monitor

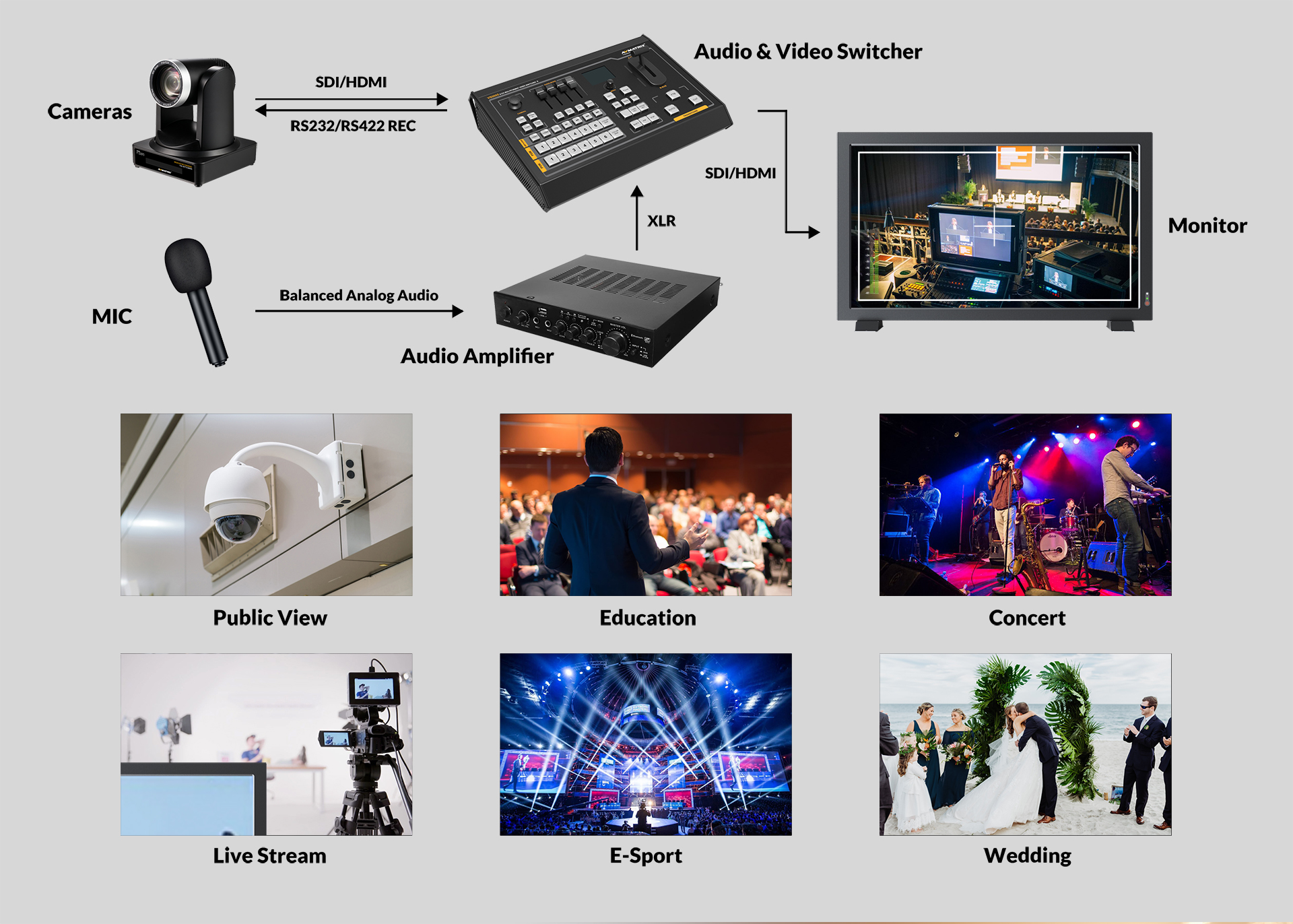

The PVM210 is a sturdy, solid addition to your performance capture or exhibition setup. Designed as an assistant or confidence monitor in live show production, or as a preview display in an editing suite, it fits into many workflows and production environments.

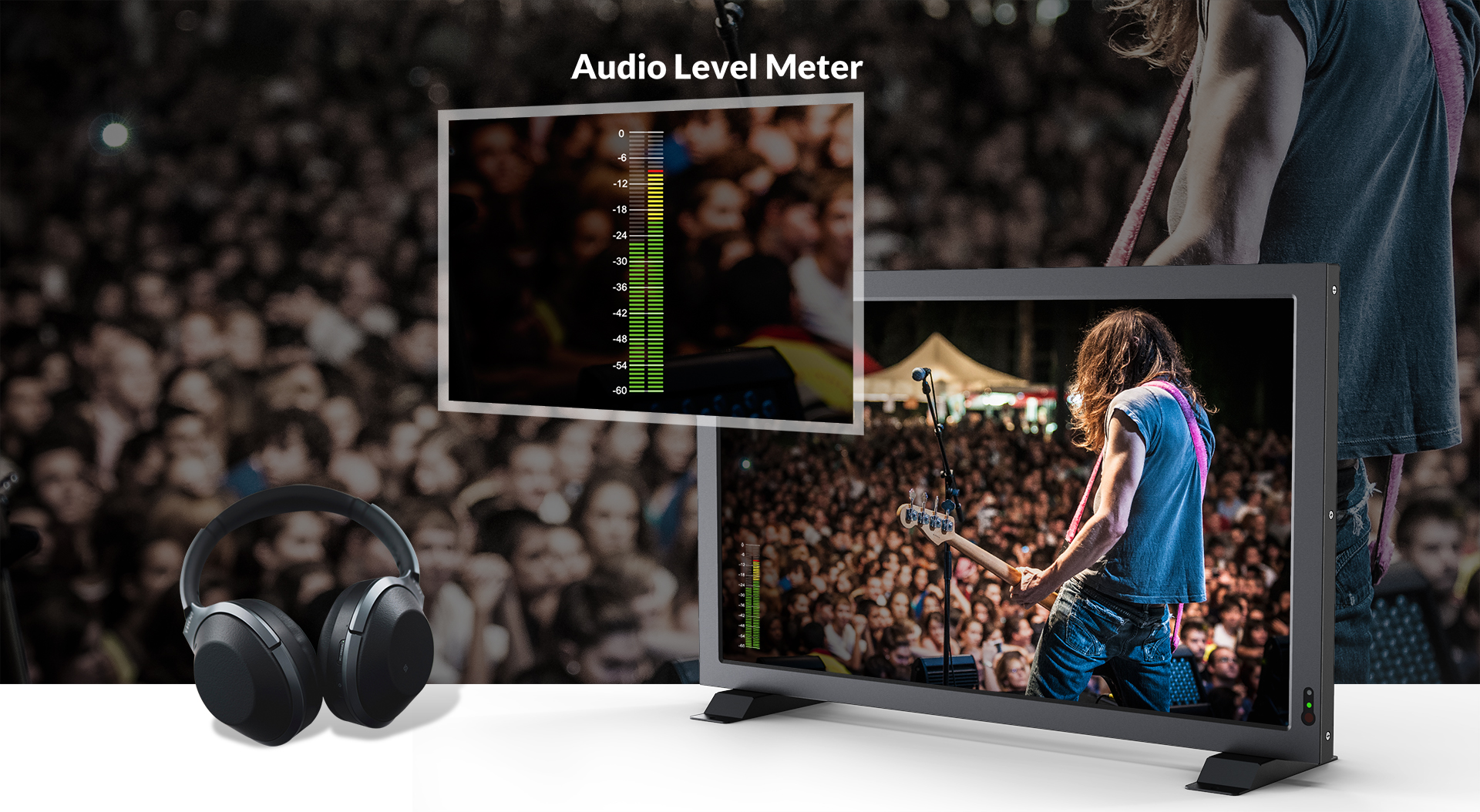

With the audio level meter switched on you monitor the current audio output, notice an audio interruption in time and keep the sound within a reasonable dB range.

PACKAGE CONTENT

  • 1× monitor Lilliput PVM210

SPECIFICATIONS

  • Brand: Lilliput
  • Model: PVM210
  • Display: 21.5" LCD
  • Resolution: 1920 × 1080 (Full HD), 16:9
  • Brightness: 1,000 cd/m²
  • Contrast: 1,500:1
  • Viewing angle (H/V): 170° / 170°
  • Color space: 101% Rec.709
  • HDR: HLG, ST2084 300 / 1000 / 10000

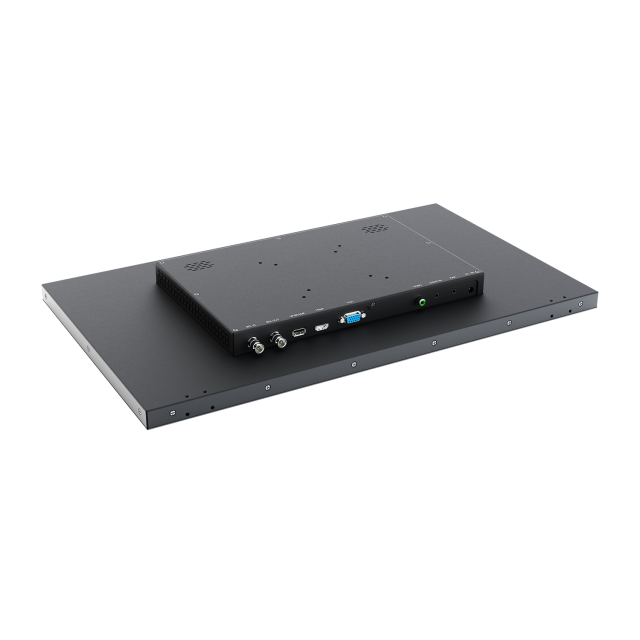

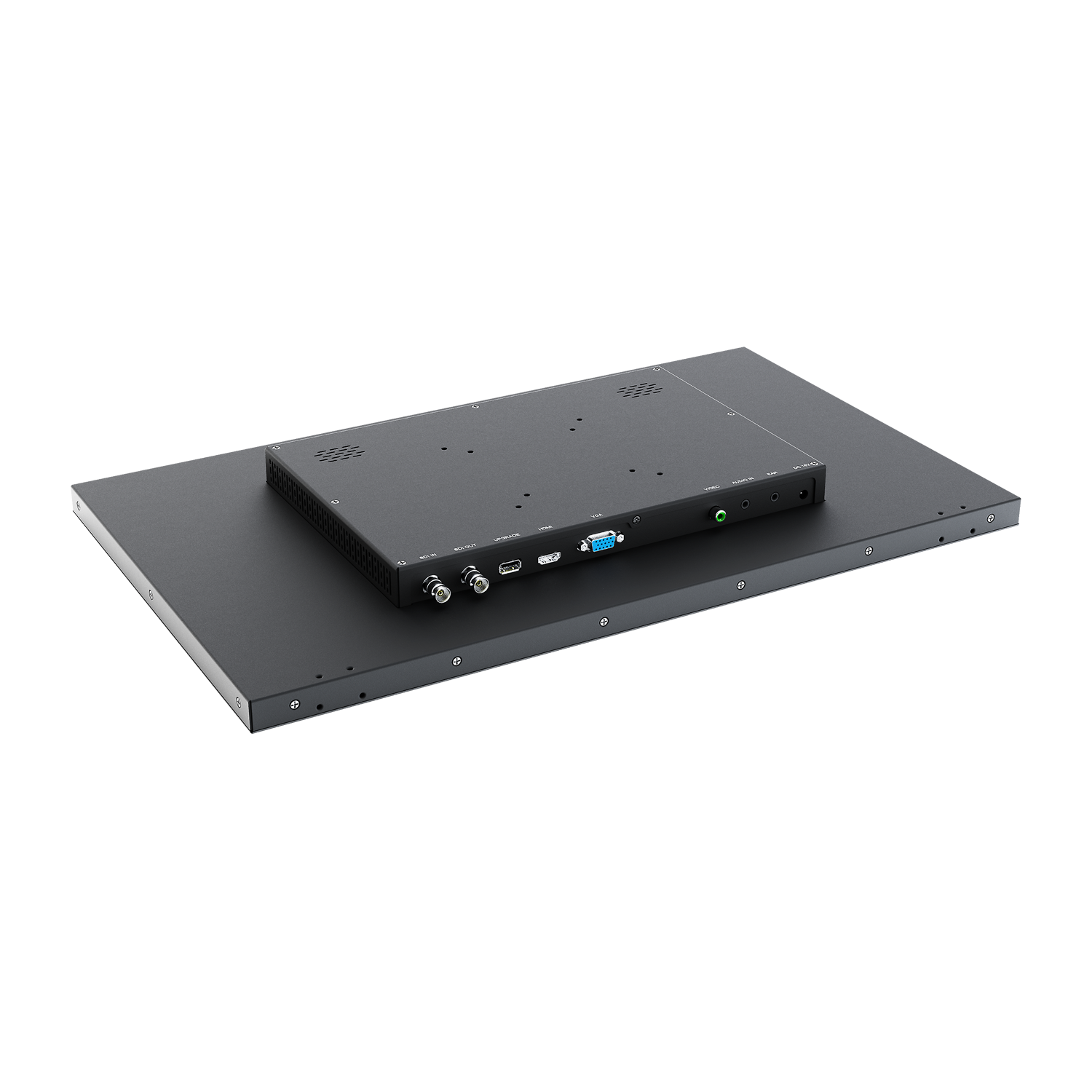

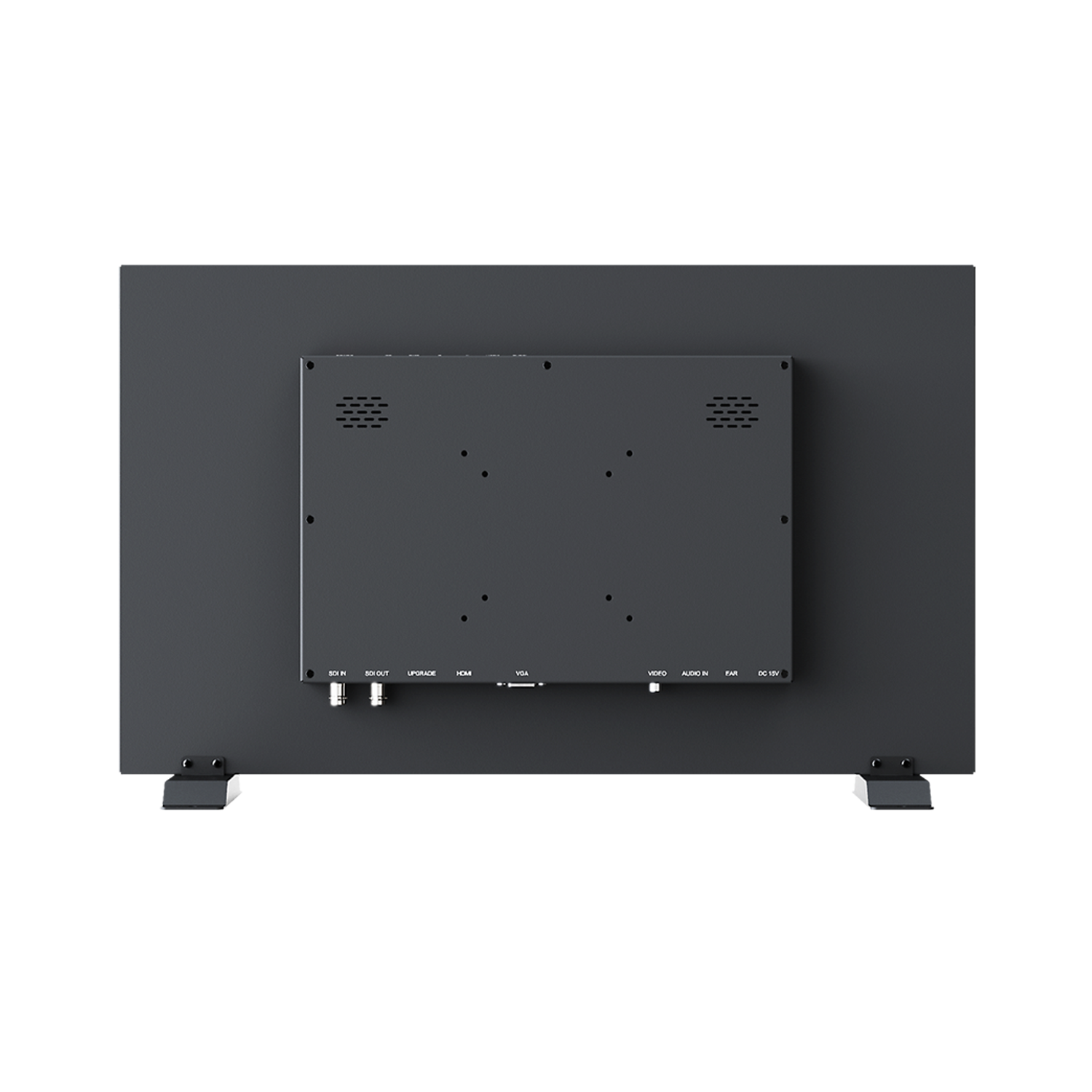

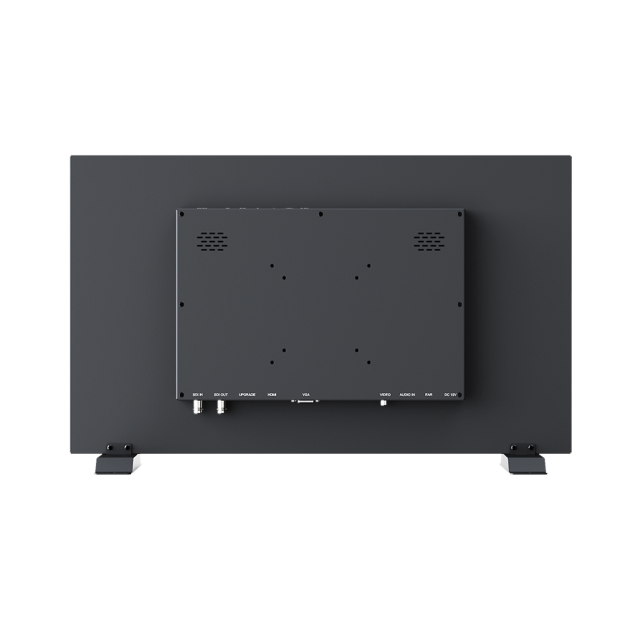

  • Video inputs: 1× HDMI 1.4b, VGA, AV
  • HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30
  • Audio: HDMI 8 ch 24-bit, 2 speakers, 3.5 mm headphones
  • Functions: HDR, center marker and safety markers, audio level meter
  • Power: DC 12–24 V
  • Power consumption: ≤ 36 W (15 V)
  • Operating temperature: 0 to 50 °C
  • Storage temperature: -20 to 60 °C
  • Dimensions (L × W × D): 524.8 × 313.3 × 19.8 mm
  • Weight: 4.8 kg

ARTICLES

Parameters

Parameters

Manufacturer: Lilliput
Category: Surveillance monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 4K UHD up to 30p · 720p up to 60p
Size21.5"
Monitor inputs4K HDMI · Composite Video · HDMI · HDMI 1.4 · VGA
Luminosity1000cd/m2
Panel resolution1920x1080
Monitor power supplyDC 12–24 V

Other parameters

Other featuresHDR
High BrightnessYes
