Condenser installation microphone - cardioid, black

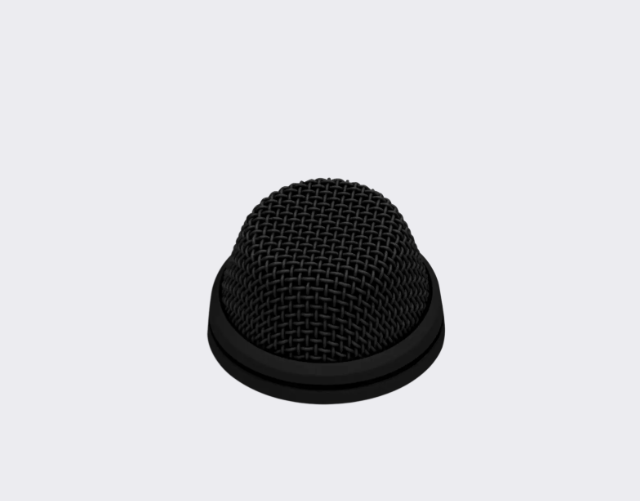

The Sennheiser MEB 104 is a compact cardioid boundary layer condenser microphone for discreet flush-mount installation in tables or ceilings. With a 1.12" diameter, 0.75" above-surface height, 125 dB max SPL, 14 mV/Pa sensitivity, and rugged housing, it ensures clear speech capture.

The Sennheiser MEB 104 is a professional-grade, pre-polarized condenser boundary microphone optimized for installed audio applications, delivering exceptional speech intelligibility through its proven cardioid capsule (90° pickup angle, 50 Hz–18 kHz ±3 dB) while rejecting ambient noise and feedback in conference rooms, lecture halls, or broadcast environments. Designed for seamless integration, it features an ultra-low-profile form factor—1.12 inches (28.5 mm) in diameter and only 0.75 inches (19 mm) protruding above the mounting surface (total height 3.54 inches / 90 mm)—allowing flush installation via screw or adhesive into tables, podiums, or ceiling tiles with minimal visual impact. Wired via a balanced Phoenix Euroblock connector (12–48 V phantom power, <200 Ω impedance), it integrates effortlessly with DSPs, mixers, or AV systems. Weighing just 55 g, the MEB 104 leverages boundary effect acoustics for natural low-end reinforcement (+6 dB at 100 Hz), ensuring warm, articulate voice reproduction without coloration—ideal for teleconferencing, panel discussions, or courtroom recording.

Key Features

• Cardioid boundary condenser: Focused pickup, excellent feedback rejection
• Ultra-discreet design: 0.75" above surface, flush-mount ready (table/ceiling)
• Proven Sennheiser capsule: 125 dB SPL, 14 mV/Pa sensitivity, 50 Hz–18 kHz
• Rugged zinc housing: Durable, dust/moisture resistant, black/white finish
• -L variant: Bi-color LED ring (green/red) for mute/active status
• Wired Phoenix connection: Balanced, phantom-powered (12–48 V)
